Laser Welding Machine 1500w 2000w 3000w
Laser welding machine is typically used for precision welding in industrial applications. It employs laser technology to provide a level of accuracy and control that is unmatched by traditional welding methods. Laser welding can be used with a variety of metals and alloys and is ideal for creating hermetic seals or welding parts with complex geometries. Additionally, because laser welding is a non-contact process, it minimizes the risk of deformation or damage to the parts being welded.
Laser Cleaning Machine
(water-cooling)
High-precision handheld fiber laser, easy to operate.
1000W~3000w accurate and fast laser welding.
Environmental protection, no pollution to the environment.
|
Model |
QYWL-FC1500 |
QYWL-FC2000 |
QYWL-FC3000 |
|
Hand-held head |
Single pendulum welding head (optional wire filling device) |
||
|
Weight of hand-held head (kg) |
0.8 |
||
|
Laser power (w) |
1500 |
2000 |
3000 |
|
Rated power (kw) |
6.6 |
9.6 |
12.6 |
|
Power adjustment range (%) |
10-100 |
||
|
Central wavelength (nm) |
1060-1070 |
||
|
Cooling method |
Water Cooling |
||
|
Fiber length (m) |
10 (Optional 5/15) |
20 |
|
|
Type of laser source |
Continuous wave |
||
|
Dimension of machine (mm) |
917*490*750 |
1110*490*750 |
1240*510*1040 |
|
Weight of machine (kg) |
115 |
145 |
220 |
|
Power supply (V) |
220 |
380 |
|
Product Details
Break through the limitations of the workbench
The machine design is compact, equipped with universal wheels, flexible movement, with good inlet and outlet air design of the shell ensures the overall heat dissipation and provides reliable welding guarantee for complex working conditions.
Fiber wire and control wire could make 10/15/20 meters, the welding head can be moved freely within the range of the control line.

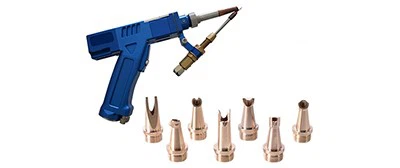

Smart handheld oscillating welding gun
1. The clever internal design and good human-machine interactive control system expand the tolerance range and weld width of the workpiece, solve the tiny defects of the weld point, and obtain perfect weld formation.
2. The ergonomic design method is adopted, which is comfortable to hold; it can be easily controlled with one hand and is easy to operate.
3. It can be configured with nozzles of various angles to meet the welding needs of different products.
Continuous laser save on maintenance costs
Compared to traditional welding equipment, Laser welding with small thermal influence area. The welding no yellow-haired black area, the overall deformation of the workpiece is small, greatly improve the aesthetics of welding.
Features
- Integrated structure, built-in integrated control, laser and cooling system.
- The hand-held welding head is flexible and convenient for outdoor welding.
- Economical equipment for welding and cutting.
- No need to set up equipment to deploy the welding station, small footprint and low maintenance cost.
- The welding gun has a cool shape and is ergonomically designed for a comfortable grip.
- The gun body can quickly adjust the parameters, and complete the wire feeding or returning with one key.
- The operation is simple, you can start welding, and you don't need to spend a lot of money to hire a welding master.
- The weld seam is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.
Our Service
---Pre-Sales Service
① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time
---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service
Case

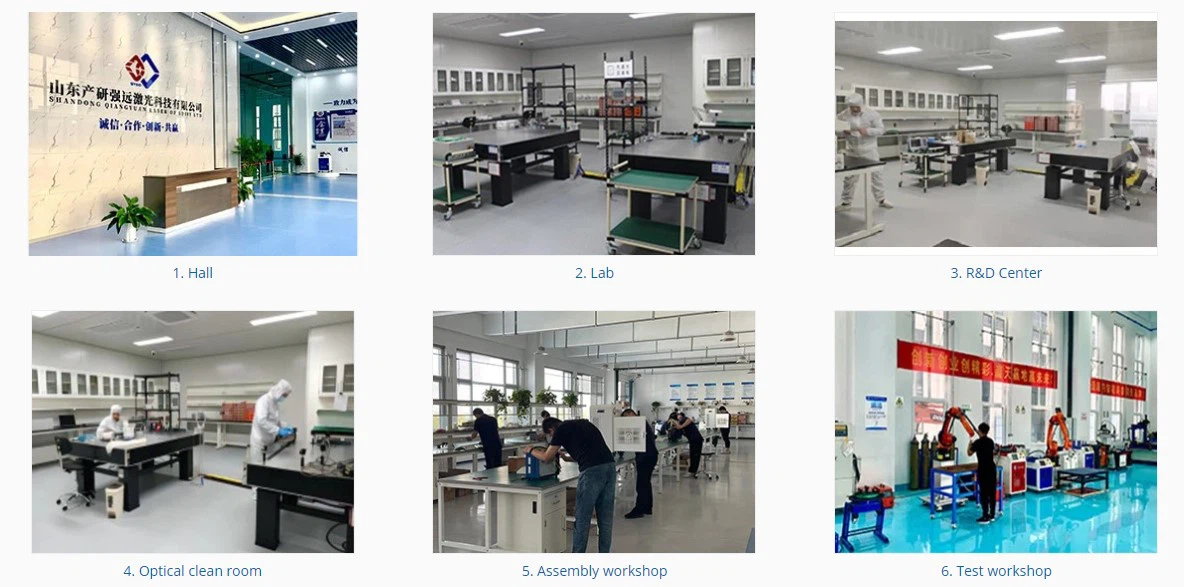

Company Profile
Shandong Qiangyuan Laser Of SDIIT Ltd.
SDQY Laser founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.
Our products has exported to European, American, Middle Eastern, Australian, African countries and regions, we provided customers with high quality laser solutions. The professional quality and service in the laser industry market have establish a good brand image and reputation.
