100W Mini Laser Cleaning Machine
Products Description
100W Gaussian Beam Laser Cleaning Machine uses Gaussian beam pulse laser to achieve non-destructive cleaning with uniform energy distribution. The 1064nm pulse laser instantly vaporizes pollutants such as rust, oil, and coating, leaving the base material unscathed. The backpack-style integrated body supports single-person outdoor/high-altitude operations, without the need for chemical reagents, and reduces 90% of toxic pollutant emissions.
Product Parameters
|
Model |
QYCL-FP100B |
|
Laser power (w) |
100 |
|
Single pulse energy (mj) |
1.8 |
|
Rated power (kw) |
0.6 |
|
Power adjustment range (%) |
10-100 |
|
Width of scanning (mm) |
100*100 |
|
Focal length (mm) |
100/160/260 |
|
Central wavelength (nm) |
1060~1070 |
|
Cooling method |
Air Cooling |
|
Fiber length (m) |
3 |
|
Type of laser source |
Pulsed fiber laser |
|
Battery |
Lithium battery(24V 25Ah) |
|
Battery life |
1.6 |
|
Dimension of machine (mm) |
492*215*550 |
|
Weight of machine (kg) |
16±0.5 |
|
Power supply |
220V |
Products Details

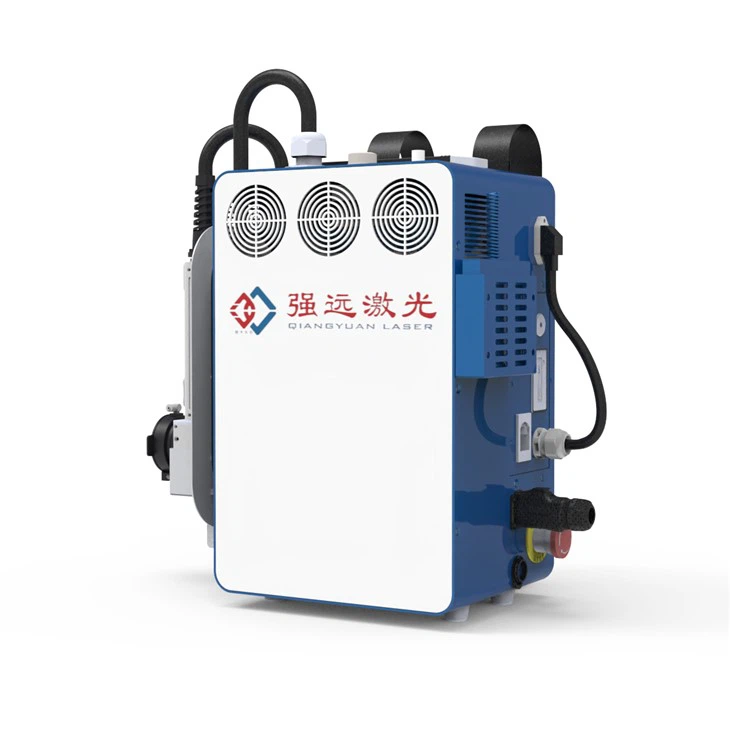

Backpack-style Lightweight Design
Ergonomic shoulder structure, 16kg ultra-light host, suitable for complex scenes such as high altitude and pipelines.
Intelligent air cooling system
The shell has multiple heat dissipation holes, air cooling, and bid farewell to the bulkiness of traditional water cooling equipment.
Gaussian Beam Precision Control
8 scanning modes, accuracy ±0.1mm, suitable for cultural relic restoration and precision mold cleaning.
Product Application
The 100W Backpack Pulsed Laser Cleaning Machine is designed for flexible, on-site surface cleaning where portability and precision are essential.
- Rust Removal – Removes rust and corrosion from metal surfaces.
- Paint Removal – Strips paint and coatings from metal components and structures.
- Oil & Grease Cleaning – Removes oil, grease, and other surface contaminants.
- Weld Seam Cleaning – Cleans weld seams and weld spots before or after welding.
- Oxide Removal – Removes oxide layers and surface residues from metal parts.
- Metal Surface Preparation – Prepares surfaces for welding, coating, bonding, or further processing.
- Automotive Parts – Suitable for cleaning engine components, metal parts, tools, and other automotive components.
- Outdoor & On-Site Maintenance – The backpack design makes it convenient for field maintenance, construction sites, workshops, and hard-to-reach areas.
Ideal for: Metal fabrication, automotive maintenance, machinery maintenance, construction, equipment repair, and on-site industrial cleaning.
our Service
1. Pre-sales support
Free sample cleaning test and customized cleaning solutions.
2. After-sales service
Global 1-year warranty (2-year warranty for laser source), 48-hour technical response.
FAQ
Q1 Will it damage the metal substrate?
→ Gaussian beam energy is precisely controllable and only acts on the contaminant micron layer.
Q2 How to choose between continuous laser equipment?
→ 100W models are suitable for 90% of fine scenes; continuous laser cleaning machines are recommended for thick industrial coatings.
Q3 How much is the maintenance cost?
→ The laser source life is 100,000 hours.
