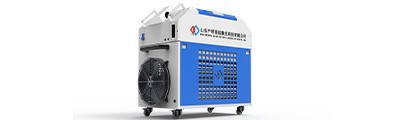

CW Fiber Laser Cleaning Machine 1500w 2000w 3000w
CW Fiber Laser Cleaning Machine 1000w 1500w 2000w 3000w Products Description CW laser cleaning machine is a new generation of surface cleaning and high-tech products. It is easy to install,operate and automate. When the machine is powered on and turned on, you do not need to add any chemicals,...
Products Description
Continuous wave laser cleaning machine is a new generation of surface cleaning and high-tech products. It is easy to install,operate and automate. When the machine is powered on and turned on, you do not need to add any chemicals, dust, water, or media to clean it. This handheld laser rust removal machine can not only remove surface resin, stains, grease, dirt, coating, etc., but also auto focus.
Adopt famous brand core components, safe, stable and reliable. Equipped with self-developed intelligent control system and visual control panel. Ergonomic design hand-held cleaning head, easier to operate and durable. It can be used for high-intensity and complex environmental cleaning in rail, Marine ships, construction machinery and other fields.
specification
|
Model |
QYCL-FC1500 |
QYCL-FC2000 |
QYCL-FC3000 |
|
|
Average laser power (w) |
1500 |
2000 |
3000 |
|
|
Weight of hand-held head(kg) |
1.5 |
|||
|
Rated power(kw) |
6.6 |
9.6 |
12.6 |
|
|
Power adjustment range(%) |
10-100 |
|||
|
Width of scanning(mm) |
10-150/10-300 |
|||
|
Focal length(mm) |
400/800 |
|||
|
Central wavelength(nm) |
1070~1090 |
|||
|
Cooling method |
Water Cooling |
|||
|
Fiber length(m) |
10m (Optional 15 m) |
20m |
||
|
Type of laser source |
Continuous Wave |
|||
|
Dimension of machine (mm) |
917*490*750 |
1110*490*750 |
1240*510*1040 |
|
|
Weight of machine(kg) |
126 |
144 |
220 |
|
|
Power supply |
220V |
380V |
||
Details
High-quality core components
Hand-held cleaning head
Ergonomic design, small size and light weight, professional water and air circuit design, built-in temperature sensor protect the optical lens, easy to maintenance and with low cost of use.
Professional mechanical structure design
Adopt 360°silent universal wheel and integrated embedded water chiller design, smaller, easier to move. Rear air duct & air intake grilles on both sides, more efficient heat dissipation with longer service life.
Open functional design
Visual multi-language touch control screen, equipped with a variety of industrial bus communication protocol interface to real-time monitoring of the control system status, help users quickly locate and solve problems.
Application
The laser cleaning machine is mainly used to remove rust on the surface of metal materials, Paint stripping and Cleaning of components.The scope of application includes: metal surface rust removal, paint removal (surface rust removal, paint removal or specified part rustremova, paint removal) and cleaning of various industrial products or molds. Using continuous fiber laser, powerful power but wil notdamage the object to be cleaned.
Company Profile
We are laser cleaning experts
Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.
