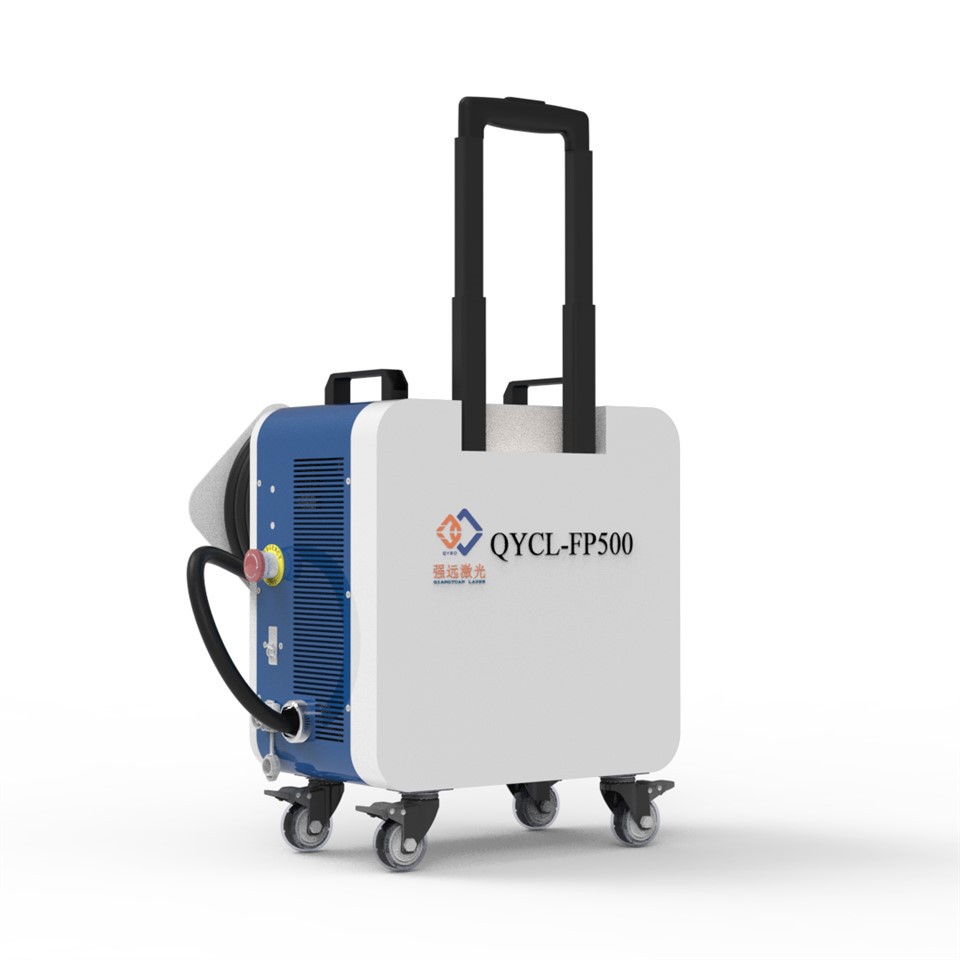

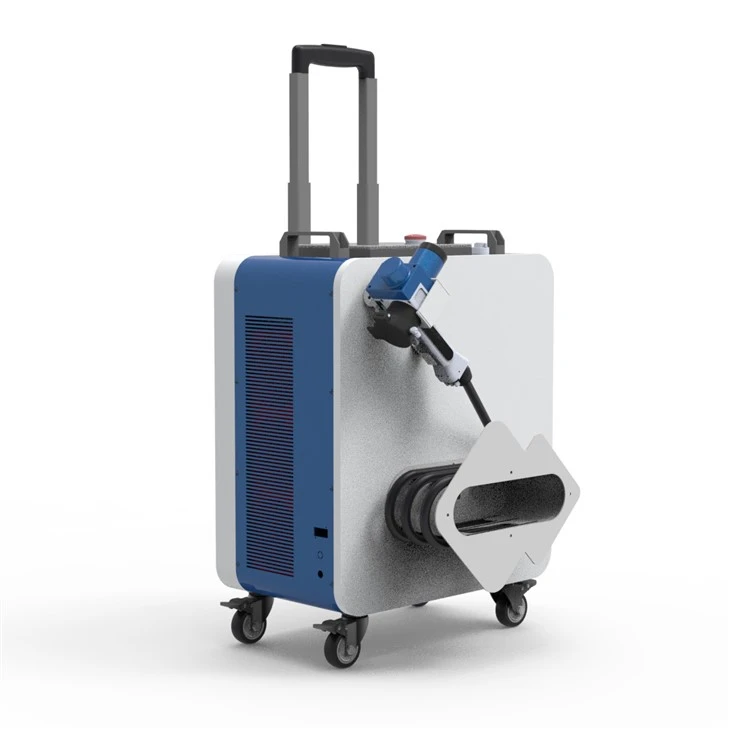

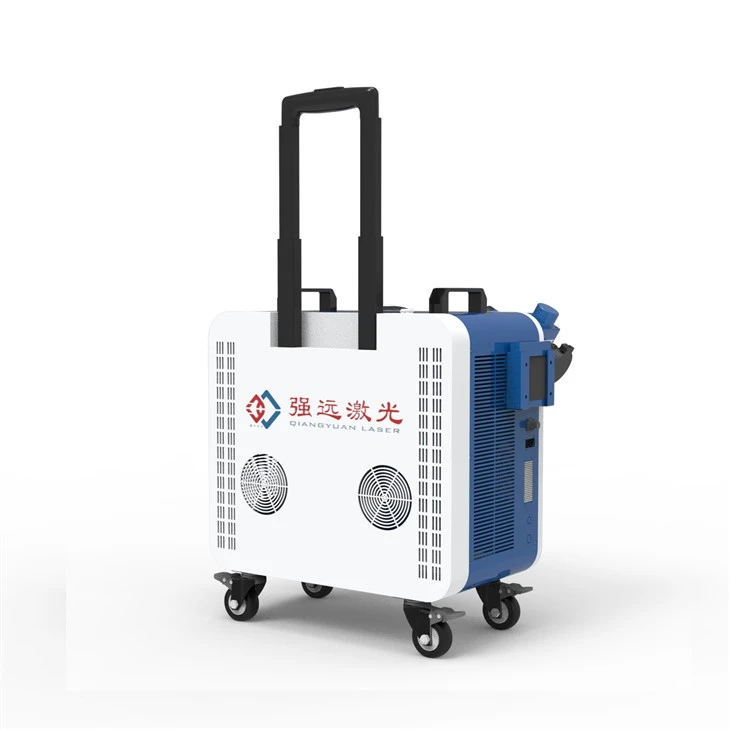

500W Pulsed Fiber Laser Cleaning Machine
Products Overview Our 500W pulsed laser cleaning machine is an advanced industrial surface treatment solution designed for high-power, high-precision contaminant removal. Utilizing state-of-the-art pulsed fiber laser technology (1064nm), it emits high-energy pulses to vaporize or ablate rust,...
Products Overview
Our 500W pulsed laser cleaning machine is an advanced industrial surface treatment solution designed for high-power, high-precision contaminant removal. Utilizing state-of-the-art pulsed fiber laser technology (1064nm), it emits high-energy pulses to vaporize or ablate rust, paint, oxides, oil, coatings, and welding residues without damaging the substrate.
Compared to sandblasting, chemical cleaning, and manual grinding, it is a clean and environmentally friendly alternative, requiring no consumables, reducing secondary waste, and minimizing environmental impact.
Key Advantages
✅ High Efficiency & Power
500W output delivers fast cleaning, wide scan width (up to 100mm), and high pulse energy for stubborn contaminants.
✅ Non-Abrasive & Non-Contact
No physical contact-preserves base material integrity, no deformation, no scratches.
✅ Eco-Friendly & Cost-Saving
No chemicals, no abrasives, no water. Zero waste, low maintenance, long lifespan.
✅ Precise & Controllable
Adjustable power (0–100%), frequency, pulse width. Selective cleaning on delicate or complex surfaces.
✅ Safe & Easy to Operate
Intelligent control, emergency stop, ergonomic handheld cleaning head (1.05kg).
✅ Versatile & Wide Application
Works on metal (steel, aluminum, copper), alloys, composites, molds, tools, large components.
Specifications
| Model | QYCL-FP500 | QYCL-FP500A | ||
| Average laser power (w) | 500 | |||
| Single pulse energy (mJ) | 1.5 | 2 | 5 | 15 |
| Laser Brand | JPT | MAX/GZ | MAX/JPT/GZ | |
| Type of laser source | Pulse laser | |||
| Output fiber type | QBH | QCS/QBH | ||
| Central wavelength (nm) | 1060~1070 | |||
| Rated power (w) | 2.5 | |||
| Power adjustment range (%) | 10~100 | |||
| Focal distance (mm) | 100/160/254/330/420 | |||
| Cooling method | Air Cooling | |||
| Fiber length (m) | 5 | 5/10 | ||
| Weight of machine (kg) | 28/29±2 | |||
| Dimension of machine (mm) | 495*372*559 | 495*372*559 500*407*559 |
||
| Working temperature (℃) | 0~40 | |||
| Voltage (V) | 220 | |||
Applications
Automotive & Transportation
- Paint stripping, rust removal on car bodies, chassis, engine parts, wheels
- Railway & subway component maintenance
Aerospace
- Turbine blade cleaning, oxide removal, coating stripping, composite repair
Shipbuilding & Marine
- Hull rust & paint removal, deck maintenance, propeller cleaning
Mold & Tooling
- Mold release agent, resin, carbon buildup removal; no damage to mold surface
Metalworking & Welding
- Oxide, rust, welding slag removal before/after welding; surface pre-treatment
Cultural Relics & Restoration
- Gentle cleaning of stone, metal artifacts, statues, historical components
Industrial Manufacturing
- Stainless steel, aluminum, copper parts cleaning; coating removal
Compared to traditional Cleaning
| Feature | Laser Cleaning | Sandblasting | Chemical Cleaning | Manual Grinding |
| Damage to Substrate | None | High | Medium | High |
| Consumables | No | Yes | Yes | Yes |
| Waste / Pollution | None | High | Toxic | High |
| Precision | High (μm level) | Low | Medium | Low |
| Speed | Very Fast | Fast | Slow | Slow |
| Cost (Long Term) | Very Low | High | High | High |
| Eco-Friendly | ✅ Yes | ❌ No | ❌ No | ❌ No |
FAQ
Q: Can it remove thick rust and heavy paint?
A: Yes. The 500W high-power pulsed laser easily removes thick rust, multi-layer paint, and heavy oxides.
Q: Does it damage the base metal?
A: No. It's non-contact and precisely controlled-only contaminants are removed.
Q: Are there any consumables?
A: No chemicals, abrasives, or water. Only electricity is needed.
Q: What maintenance is required?
A: Very low- Just need to have your lenses checked and replaced regularly.
Q: Can it be integrated into a production line?
A: Yes. Supports handheld and automated (robot) integration.
