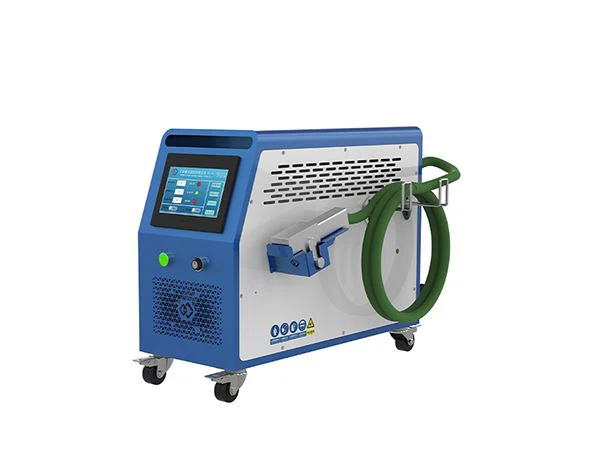

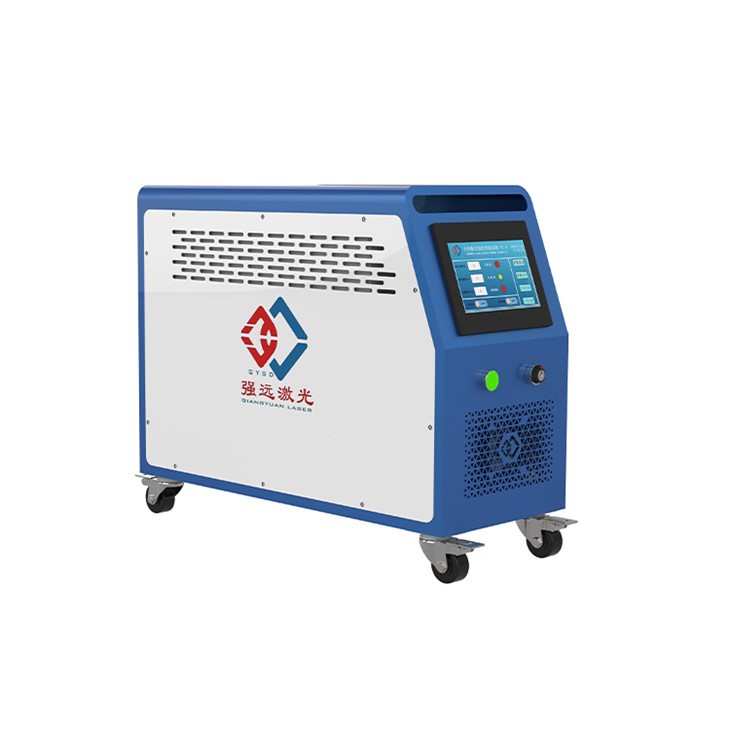

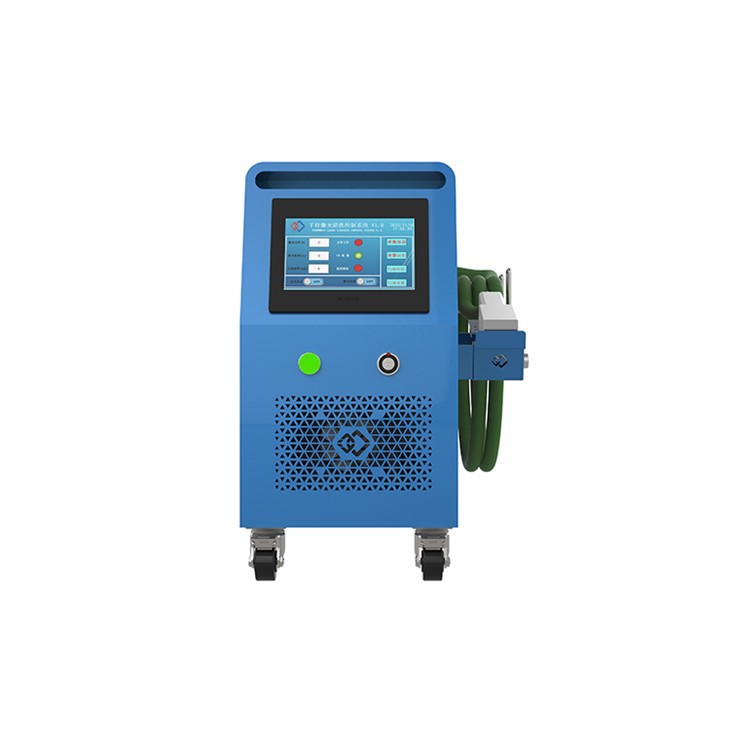

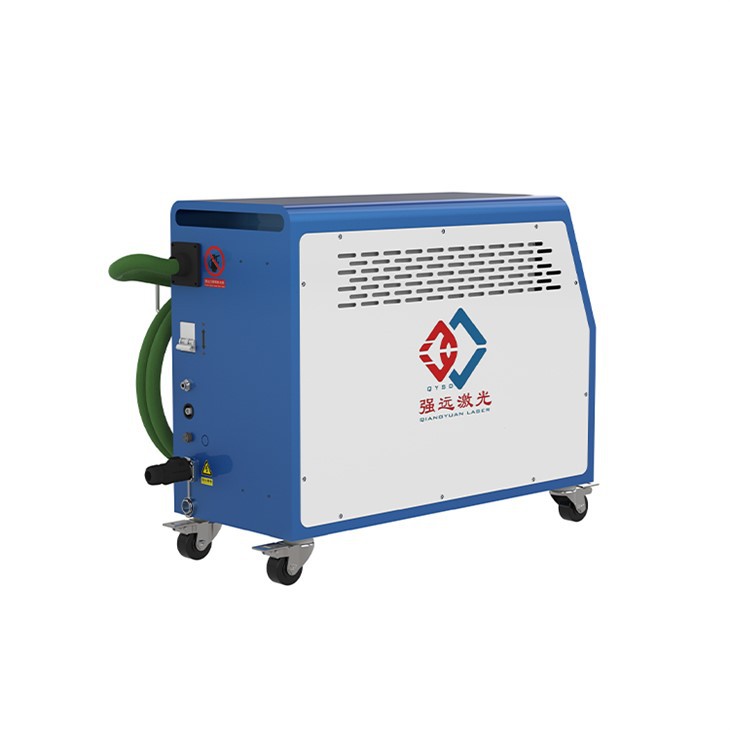

800w 1200w 1500w 2000w Air Cooling CW Laser Cleaning Machine
The air-cooled continuous laser cleaning machine can achieve efficient cleaning, non-destructive processing, energy saving and environmental protection. Compared with traditional cleaning methods, the air-cooled continuous laser cleaning machine can quickly remove various impurities and dirt...
Product Description
The air-cooled continuous wave laser cleaning machine can achieve efficient cleaning, non-destructive processing, energy saving and environmental protection. Compared with traditional cleaning methods, the air-cooled continuous laser cleaning machine can quickly remove various impurities and dirt attached to the surface of the object without damaging the surface of the object to be cleaned. Moreover, no secondary pollution and waste will be produced during the cleaning process, making it a very environmentally friendly cleaning method.
Specification
| Model | QYCL-FC800A | QYCL-FC1200A | QYCL-FC1500A | QYCL-FC2000A | |
| Power (W) | 800 | 1200 | 1500 | 2000 | |
| Rated power consumption (kW) | 2.7 | 4 | 4.5 | 4.5 | |
| Power adjustment range (%) | 10-100 | ||||
| Scan width (mm) | 10-150/10-300 | ||||
| Focal length (mm) | 400/800 | ||||
| Operating mode | Continuous wave | ||||
| Central wavelength (nm) | 1070~1090 | ||||
| Cooling method | Air Cooling | ||||
| Fiber length (m) | 10m | 10m | |||
| Output method | Standard QBH | ||||
| Auxiliary gas | Dry compressed air or inert gas after filtration. | ||||
| Machine size (mm) | 665*300*590 | ||||
| N.W (kg) | 60 | ||||
| Power supply voltage (V) | 220 | ||||
| Place environment | 1.Ambient humidity 10 % ~ 85 % RH, no condensation. 2.There is no explosive and corrosive gas in the place where the equipment is installed. Environmental temperature 10 °C ~ 40 °C. |
||||
| Working environment | Noise, ventilation, dust and other influencing factors. | ||||

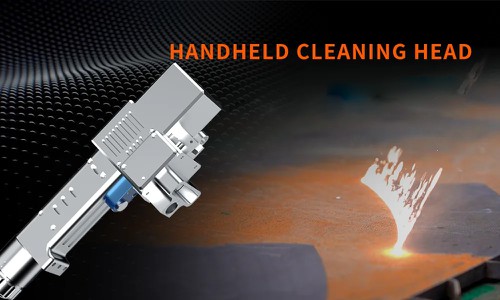

Cleaning Head
| Cleaning head weight (kg) | 0.8 | ||||
| Protect lens for cleaning head | D30*T5 | ||||
| Focusing lens for cleaning head | D20*3.5 F400 or D20*3.5 F800 | ||||
| Collimating lens for cleaning head | D16*5 F50 | ||||
Machine Features
High Precision and Control
Laser beam focus is meticulously controlled, enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected.
Non-Contact Cleaning
Laser cleaning operates without physical contact, preventing wear and tear during the cleaning process. This feature is especially advantageous for maintaining high precision on the object's surface.
Energy-Efficiency and Environmental Friendliness
Laser beam focus is meticulously controlled,enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected.
Versatility Across Materials
Laser cleaning applications span various materials, showcasing remarkable adaptability.
machine Advantages
Application

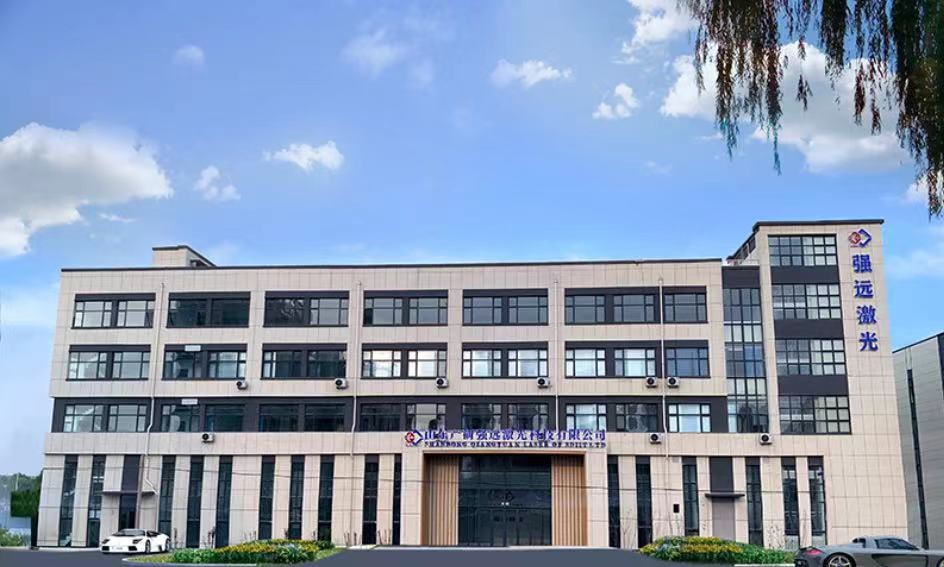

Company Profile
in one-stop service
SDQY Laser has an innovative team of PhDs composed of multidisciplinary professionals in optics, mechanics, electronics, computer science, and materials science. It has more than 50 core independent intellectual property rights at home and abroad in the fields of laser cleaning/welding key core components, process methods, intelligent control, and complete automation solutions.
