200W Top Hat Pulsed Laser Cleaning Machine
SDQY Laser has a registered capital of USD 13 million. It is a high-tech innovation enterprise focusing on the research and development, production, sales and comprehensive solutions of laser cleaning/welding equipment.
200W Top Hat Pulsed Laser Cleaning Machine
Top Hat/Flat Top Pulsed Fiber Laser Cleaning Machine is a new generation of surface cleaning and high-tech products. It is easy to install,operate and automate. When the machine is powered on and turned on, you do not need to add any chemicals, dust, water, or media to clean it. This handheld laser rust removal machine can not only remove surface resin, stains, grease, dirt, coating, etc., but also auto focus.

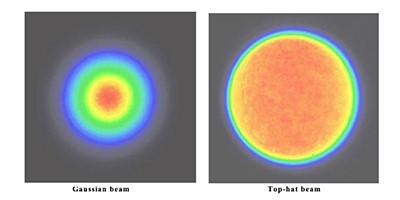

Top Hat/Flat Top Beam Advantages
1. For a given process threshold energy, the top-hat spot will remain nearly the same size even when the pulse energy is increased. This enables a wide processing freedom when working with the same laser machine on different materials/thicknesses.
2. Laser energy is utilized optimally - less energy is wasted below the process threshold.
3. The Heat Affected Zone (HAZ) is reduced because less energy is required to achieve the same process result. This results in sharp and brittle edges in the treated area.
Product Parameter
Model | QYCL-FP200A |
Average laser power (w) | 200~220 |
Single pulse energy (mj) | 13 |
Weight of hand-held head（kg） | 2 |
Rated power（kw） | 2.5 |
Power adjustment range（%） | 10-100 |
Width of scanning（mm） | 10-100 |
Focal length（mm） | 100/160/260/300/420 |
Central wavelength（nm） | 1060~1070 |
Cooling method | Water Cooling |
Fiber length（m） | 5m (Optional 10m) |
Type of laser source | Pulsed fiber laser |
Dimension of machine (mm) | 1110*490*750 |
Weight of machine（kg） | 144 |
Package size (mm) | 1200*560*950 |
Package weight（kg） | 205 |
Power supply | 220V |
Product Details
High Quality Core Components
MAX/Raycus/JPT/IPG laser source, first class brand, it can be customized.
Schneider/Omron/Chint famous electrical brand, safe, stable and reliable.
Portable Cleaning head
Ergonomic design, hand-held or with automation equipment. With quick connector, easy operation, professional air pipe design it’s better protect the optical lens, suitable for various complex cleaning conditions.
Integrated Appearance Design
Integrated embedded water cooler, with 360° silent universal wheels, easy to move. Equipped with a separate fiber box.
Open Functional Design
Independent R&D, visual customizable multi-language touch control panel.
Support a variety of industrial bus communication protocols, it can meet customer’s automatic control design.
Product Application
Some of the key applications for top-hat laser cleaning include:
Mold cleaning in rubber and injection molding, composite manufacturing and food industry
Removal of oil and grease
Oxide / rust removal in maintenance operations
Pre-weld and post-weld seam cleaning
Ktl paint removal
… and many others.
Our Service
24*7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
One-year warranty is provided. (The detailed reference will be written into the final contract.)
Professional staff for installation and training if needed.
Spare parts are supplying on time or doing some inventory if promising certain sales volume.
Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
FAQ
Q1: How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2: Payment terms?
A2: Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q3: Do you have CE document and other documents for customs clearance?
A3: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q4: Delivery time
A4: General configuration:7 days. Customized:7-10 working days.
Q5: Can I get the sample to check the quality or machine?
A5: Of course, we can help make welding samples with free, please send us your product to our company.
Q6: Can you arrange the shipment for me?
A6: Sure, we can arrange the shipment for our clients accordingly by sea and air or by courier. Trading terms FOB, CIF, EXW etc. are available.
Q7: What's the package?
A7: All of machines we will packed with standar wooden box.
