300W Laser Cleaning Machine
Air-cooled laser cleaning Machine is a new generation of surface cleaning of High-tech products. Easy to install, manipulate and automate. Simple operation, can remove the surface of the object resin, oil, stains, dirt, embroidered turbid, coating, coating, paint.
Product Description
The overall size is 500*438*302mm, with a total weight of approximately (19Kg). The equipment adopts a luggage structure, making it easy to move. Single mode pulse laser beam has good quality, high peak power, controllable cleaning accuracy, and wide applicability. It can be used for cleaning surface rust, oxides, coatings, and other attachments of metal materials (steel, aluminum, copper, etc.).
Products Features
High-quality core components
IPG/Raycus/MAX/JPT laser source, Qiangyuan self-developed control system and cleaning head, jumper type design can switch multi-brand laser, luggage type mechanical structure, more lightweight and flexible.
Portable cleaning head
2D galvanometer structure, 8 graphic cleaning solutions, ergonomic design, small size easy to hold, optional different F-theta lens.

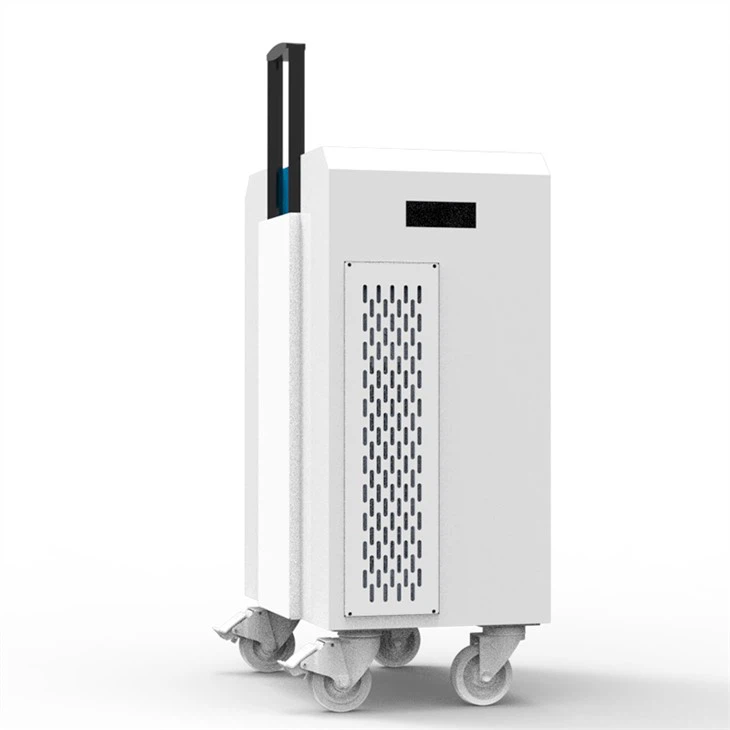

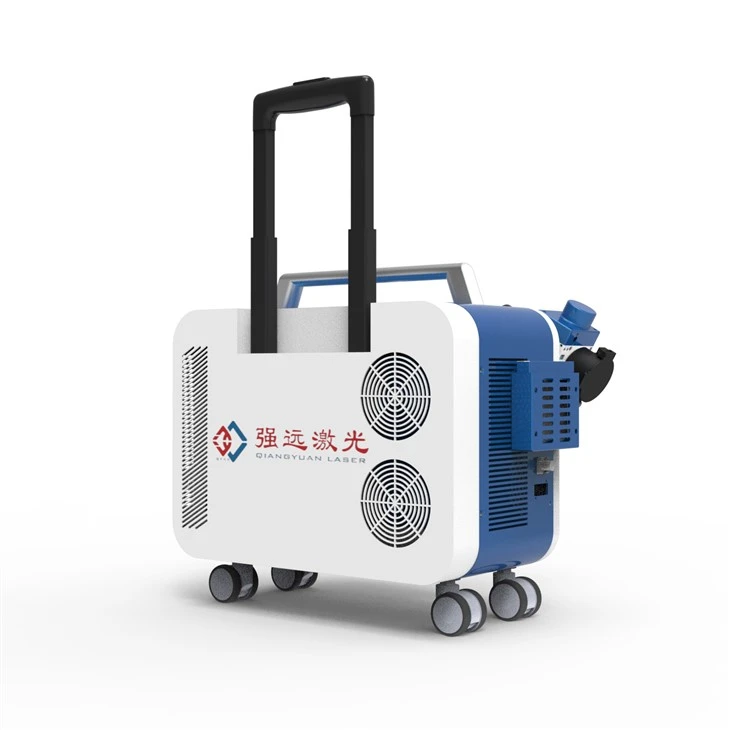

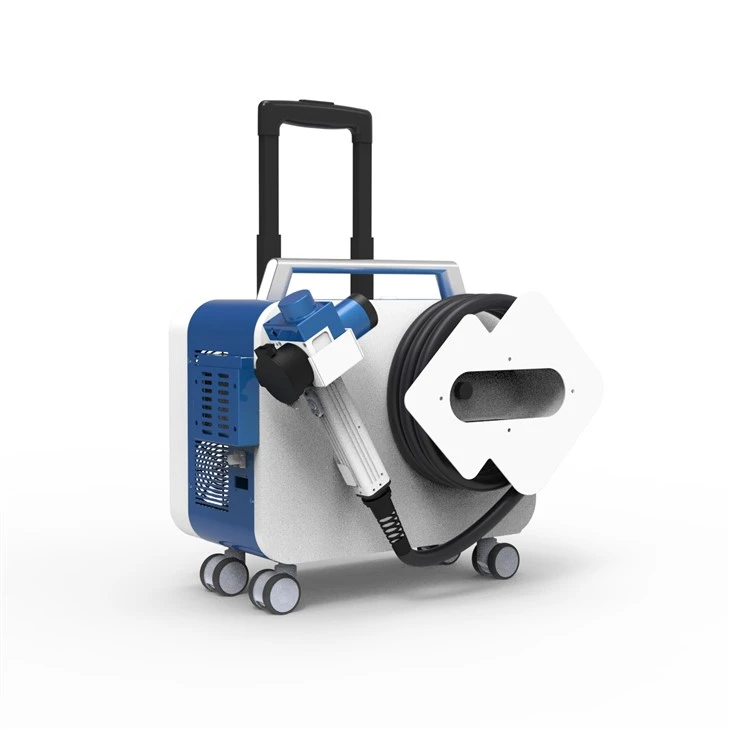

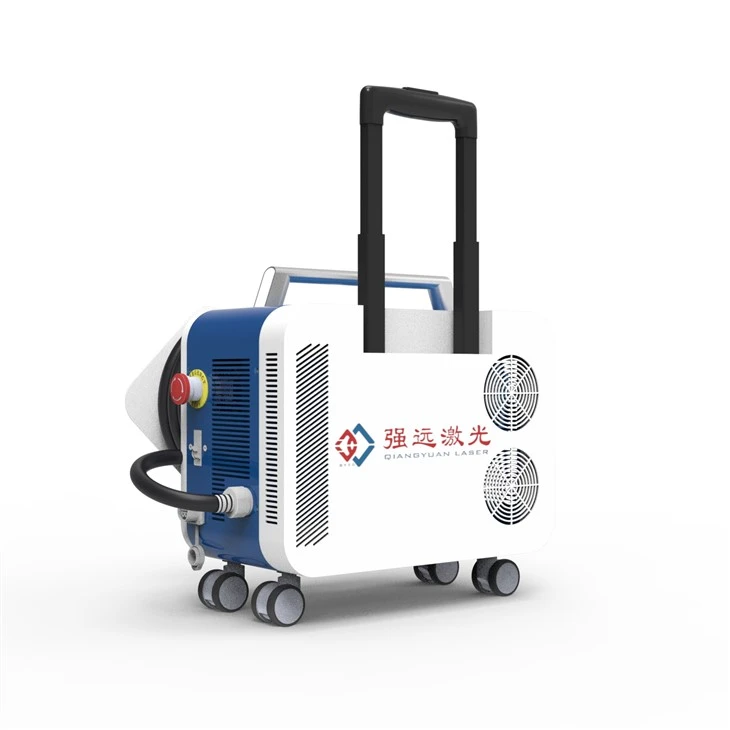

Luggege type portable structure
Luggage type design, flexible movement, 360° silent universal wheel rotation, aluminum alloy pull rod, strong and durable. Easy to achieve laser cleaning requirements.
Open functional design
Visual multi-language touch screen, standard with 8 kinds of cleaning graphics, can be customized graphics. Supports a variety of bus protocols.
Product Parameters
|
Model |
QYCL-FP300 |
|
Average laser power (w) |
300 |
|
Single pulse energy (mj) |
1.8 |
|
Rated power (kw) |
1.5 |
|
Power adjustment range (%) |
10-100 |
|
Width of scanning (mm) |
100*100 |
|
Focal length (mm) |
100/160/260/300 |
|
Central wavelength (nm) |
1060-1070 |
|
Cooling method |
Air Cooling |
|
Fiber length (m) |
5m (Optional 10 m) |
|
Type of laser source |
Pulsed fiber laser |
|
Dimension of machine (mm) |
500*438*302mm |
|
Weight of machine (kg) |
19 |
|
Power supply |
220V |
Value advantages created for you
⏱️70% cost reduction: no consumables (such as abrasives/chemicals), 60% energy consumption reduction, and maintenance costs close to zero.
🌱 100% environmental compliance: no hazardous waste disposal costs.
🛡️ Safety: The cleaning head has a safety lock design, the dust cover is closed and no light is emitted, and no light is emitted when the tilt angle exceeds the set angle.

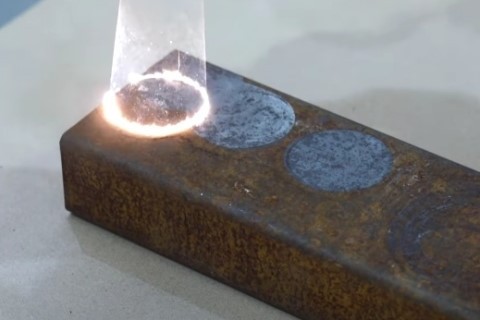

Product Application
Company Profile
who we are?
SDQY Laser is a professional manufacturer of laser cleaner, committed to providing customers with high-quality products and excellent services. As an enterprise with its own R&D team, we are constantly developing and innovating to provide customers with better solutions.
We are well aware of customers' needs and requirements for products, so we also provide free testing services so that customers can better understand our products and services. We welcome customers to send us samples for testing, and we will give the test results and solutions as soon as possible.
high quality
advanced equipment
professional team
global shipping
FAQ
Q1: Does it support 110V voltage?
✅ Yes! 110V version is available.
Q2: What are the advantages of Gaussian spot compared to traditional flat top light?
Gaussian light has energy gradient distribution, soft edge transition, and avoids "heat affected zone", which is particularly suitable for cultural relics restoration and precision parts.
Q3: Warranty and after-sales response?
Global 1-year whole machine warranty.
