200w Laser Cleaning Machine
Product Description
200w Laser Cleaning Machine integrates cutting-edge laser technology into a luggage design, breaking the bulky limitations of traditional industrial equipment. Air-cooled design, no water chiller ready to use, easily handles high-precision cleaning tasks such as metal corrosion, coating stripping, and cultural relic restoration, and is the ultimate solution for mobile operations and on-site construction.
Product Parameters
|
Model |
QYCL-FP200 |
|
Average laser power (w) |
200 |
|
Type of laser source |
Pulse laser |
|
Output fiber type |
QCS |
|
Single pulse energy (mJ) |
1.8 |
|
Central wavelength (nm) |
1060~1070 |
|
Rated power (w) |
800 |
|
Power adjustment range (%) |
10~100 |
|
Focal distance (mm) |
160/210/330/420 (optional) |
|
Cooling method |
Air Cooling |
|
Fiber length (m) |
5 |
|
Weight of machine (kg) |
19±2 |
|
Dimension of machine (mm) |
500 X 438 X302 |
|
Working temperature (℃) |
0~40 |
|
Voltage (V) |
220 |
Product Features

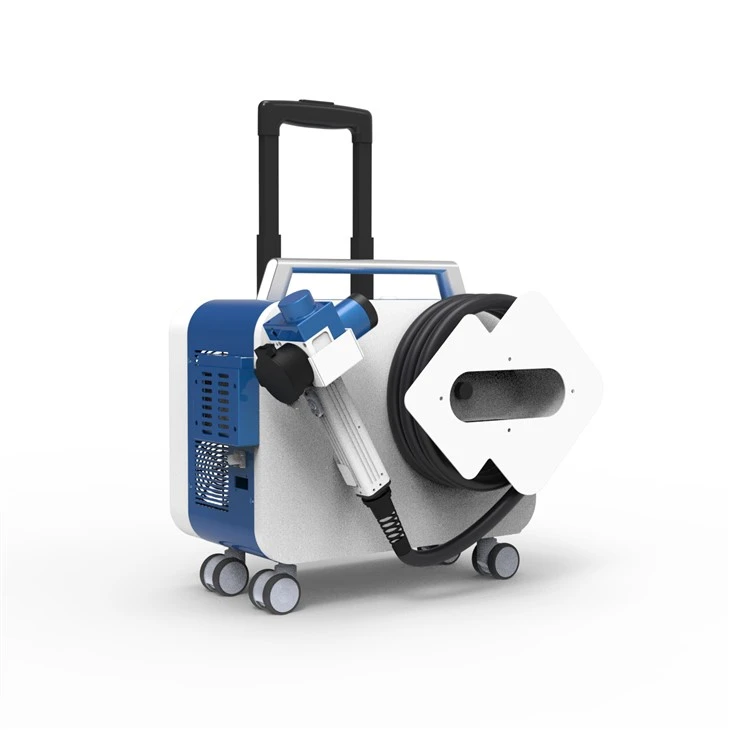

🚗 Trolley case mobile design
Aluminum alloy frame + wear-resistant rollers + telescopic pull rod, like a suitcase, it can be freely shuttled between workshops, construction sites, and aerial work platforms.
📦 Extremely lightweight
The whole machine is only 19kg and can be carried with one hand, saying goodbye to the traditional equipment handling team, and female engineers can also operate independently.
🌬️ Pure air cooling technology
Built-in air cooling system, stable operation in 0 to 40°C environment, maintenance-free.
🔬 Self-developed Gaussian spot cleaning head
Output Gaussian distribution laser beam, concentrated energy without thermal damage, accurately remove micron-level pollutants.
⚡ Intelligent interactive system
Multi-language 4-inch touch screen, one-button linkage adjustment of power/frequency/scanning speed.
application
200W luggage type cleaning machine with compact structure, which is portable and convenient to carry for outdoor cleaning. It can be used for many applications.
-
- Precise de coating of small areas.
-
- Natural stone cleaning.
-
- Rust/oxide removal.
-
- Oil & grease removal / Cleaning oil deposits.
-
- Paint & plating removal.
-
- Pre-treatment to enhance adhesive bonding.
-
- Weld seam pre-treatment/Removal preparation welding layers.
-
- Industrial, military & shipyard - production intensive de-coating.
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio, we can judge whether our machine can meet your need or not. Then we can recommend you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: What's the guarantee, in case the machine breaks down?
The machine has two years guarantee.
05: How about the documents after shipment?
After shipment, we will send all original documents to you, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
