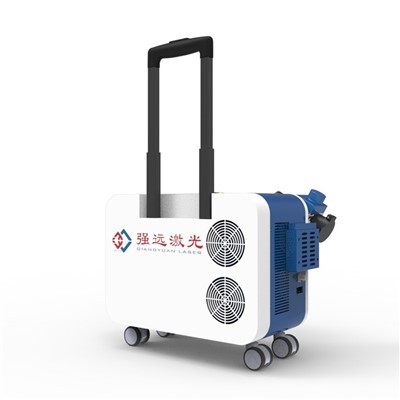

1000W Laser Metal Cleaner
Product Description
Our 1000W laser cleaning machine with advanced features including high peak power pulse laser, high-speed scanning, precise control, and portability, providing efficient and cost-effective solutions for industrial cleaning. This non-contact method utilizes laser energy to evaporate or remove surface layers of materials, ensuring effective cleaning while preserving underlying surfaces, making it applicable in manufacturing, automotive, aerospace, and other industries.
Advantages
Compared with traditional cleaning methods, laser cleaning offers several advantages:
- Safety: It's a non-contact method that doesn't damage the substrate.
- Environmental Protection: No secondary pollution, and removed substances can be recycled.
- Precision and Control: Allows selective area cleaning and micron-level precision in thickness control.
- Cost-Effective: Laser cleaning machines have excellent cost performance as they require no consumables, only power consumption.
- Versatility and Mobility: It can be hand-held or integrated into automation systems, offering strong applicability and mobility.
Product Parameters
|
Model |
QYCL-FP1000A-15mj |
QYCL-FP1000A-50mj |
|
Average laser power (w) |
1000 |
1000 |
|
Single pulse energy (mj) |
15 |
50 |
|
Weight of hand-held head (kg) |
1.5 |
|
|
Rated power (kw) |
10 |
|
|
Power adjustment range (%) |
10-100 |
|
|
Scanning width (mm) |
10-100 |
|
|
Focal distance (mm) |
100/160/254/330/420 |
|
|
Central wavelength (nm) |
1060~1070 |
|
|
Cooling method |
Water Cooling |
|
|
Fiber length (m) |
10m |
|
|
Type of laser source |
Pulsed fiber laser |
|
|
Dimension of machine (mm) |
1240*510*1040 |
|
|
Weight of machine (kg) |
235 |
|
|
Power supply (V) |
380 |
|
Smart cleaning Head
- 2D galvanometer supports a variety of custom graphic cleaning.
- Air curtain dustproof structure effectively protects core components.
- Safety lock prevents laser emission when dust cover is closed.
- Focus laser assisted, precise focal distance positioning.
- Tilt-sensing system to prevent accidental laser emission.
Control Mainboardand Panel
This laser cleaning machine cleaning system contains the mainboard and panel,through the panel set parameters transmitted to the laser mainboard, and thenthrough the mainboard to control the laser source and laser head to adjust thelaser cleaning parameters, such as laser power, cleaning width, pulse width, laserfrequency, etc.
Application
(1) Removal of coatings on metal or workpiece surfaces.
(2) Rapid rust removal, oxide removal, and paint stripping.
(3) Removal of grease, resin, residual glue, dust, dirt, and production residues.
(4) Micro-roughening of metal surfaces.
(5) Paint stripping, rust removal, and oil removal before welding and bonding, and oxide and residue treatment after welding.
(6) Mold cleaning, such as tire molds, electronic molds, and food molds.
(7) Oil removal after precision parts production and processing.
(8) Rapid cleaning during maintenance of nuclear power components.
(9) Oxide treatment, rust removal, and paint stripping during the production or maintenance of aerospace weapons and ships.
(10) Cultural relics cleaning and building exterior cleaning.
company Profile
We are Laser Cleaning experts
SDQY Laser (Laser Research Institute of Shandong Academy of Sciences) has been focusing on the research and development of industrial laser equipment for more than 45 years and is a national high-tech enterprise. It has a 20,000 square meter production base and has passed the ISO 9001 quality management system and EU CE certification. Its products cover markets in more than 35 countries and provide laser cleaning solutions for Fortune 500 companies such as CRRC, Sany Heavy Industry, and China Shipbuilding.
fAQ
Q1. Will the cleaning process damage the metal surface?
A: No! The laser parameters are dynamically adjusted based on the reflectivity of the substrate and only act on the contaminant layer (such as rust and paint).
Q2. Do you provide a trial service?
A: Yes! Free sample cleaning and proofing are provided.
Q3 How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model by our accumulated experiences.
Q4. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
