300W Fiber Pulsed Laser Cleaning Machine
Product Description
The 300W fiber pulse laser cleaning machine use Gaussian beam pulses with concentrated energy. It has better effects on removing coatings on metal surfaces and cleaning before and after welding, perfectly protecting the substrate with zero damage.
Product Parameters
|
Model |
QYCL-FP300 |
|
Average laser power (w) |
300 |
|
Single pulse energy (mj) |
1.8 |
|
Rated power(kw) |
1.1 |
|
Power adjustment range(%) |
10-100 |
|
Width of scanning(mm) |
0-100 |
|
Focal length(mm) |
160/210/330/420 |
|
Central wavelength(nm) |
1060-1070 |
|
Cooling method |
Air Cooling |
|
Fiber length(m) |
5m |
|
Type of laser source |
Pulsed fiber laser |
|
Dimension of machine (mm) |
500*438*302 |
|
Weight of machine(kg) |
19 |
|
Power supply (V) |
220 |
Product Features

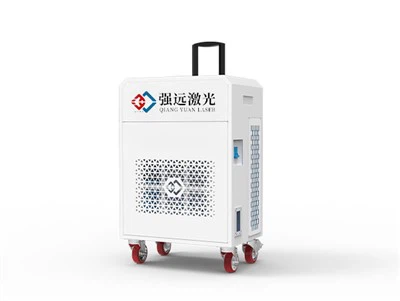

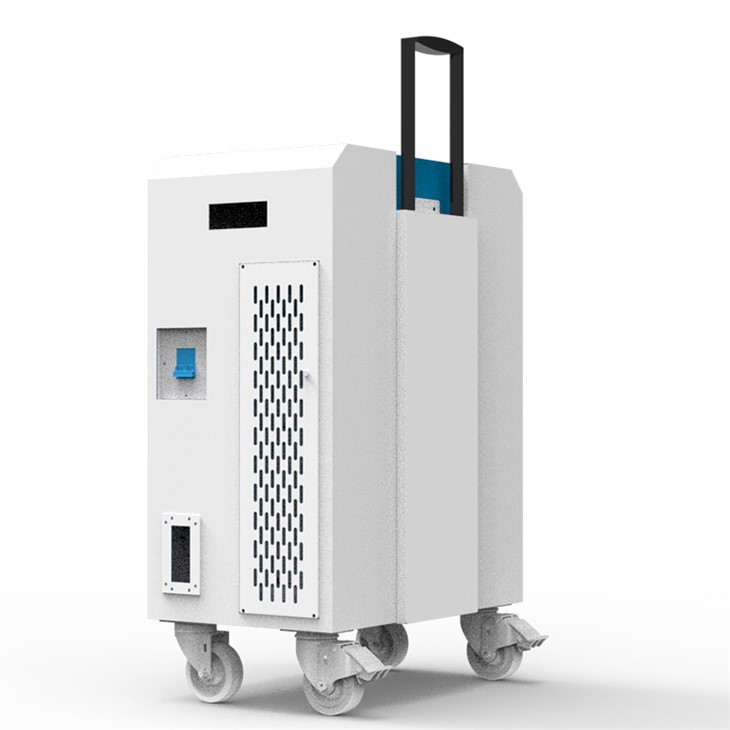

▋ Trolley case-style mobility
Telescopic trolley + universal wheel set, suitable for factory/dock/field multi-scene transfer.
▋ High-efficiency air cooling system
Say goodbye to bulky water coolers, work continuously for 12 hours in 40℃ environment without reducing power.
▋ Self-developed cleaning head
2D galvanometer, supports multiple graphics, air curtain dustproof structure protects core components, safety lock design, tilt sensing system.
Product Application
1. Industrial manufacturing and metal processing
(1) Weld and precision parts cleaning
Applicable to cleaning oxide layers and rust on metal welds such as carbon steel and stainless steel. Gaussian light has concentrated energy and can accurately remove welding slag and oxide scale left on the weld while avoiding damage to the substrate, which is especially suitable for thin plate materials.
(2) Mold and mechanical parts maintenance
It can effectively remove oil stains, carbon deposits and aged coatings on the mold surface, and the high energy density of Gaussian light can slightly roughen the surface, enhance the adhesion of subsequent spraying, and extend the life of the mold.
2. Semiconductors and electronic components
Used to remove micron-level contaminants such as memory templates and circuit board solder joints. The single pulse energy of pulsed laser is controllable, combined with the focusing ability of Gaussian spot, it can avoid thermal damage and ensure the functionality of precision components.
3. Aerospace components
Cleaning oxide layers and coatings of key components such as aircraft engine blades and landing gear. Gaussian light can accurately remove the oxide scale on the surface of titanium alloy, avoiding the hydrogen embrittlement problem caused by traditional pickling.
4. Surface modification: metal roughening and adhesion improvement
The high energy of the center of Gaussian light can partially melt the metal surface, forming a rough texture (roughening), significantly improving the adhesion of paint and coating, and is often used in ship and bridge anti-corrosion projects.
company Profile

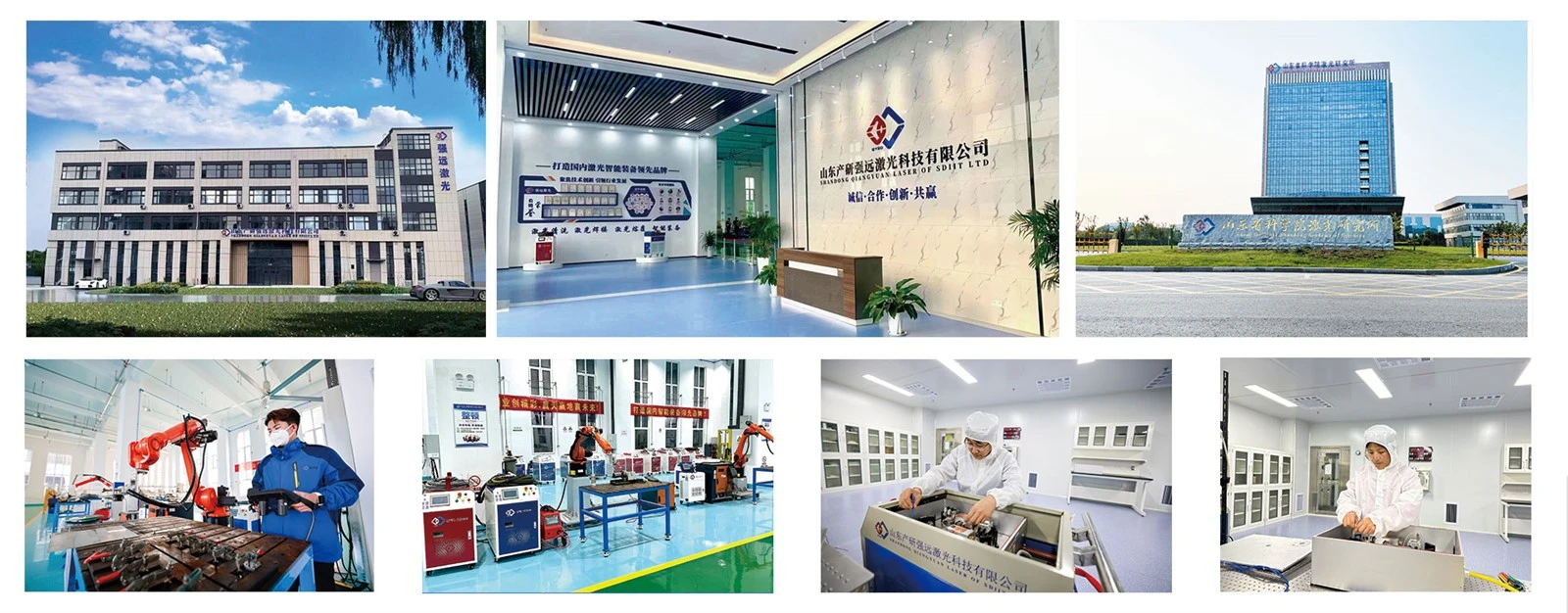

Shandong Qiangyuan Laser Of Sdiit Ltd. (SDQY Laser) is a national high-tech enterprise focusing on the research and development, production, sales and comprehensive solutions of laser cleaning/welding equipment. As an equity investment enterprise of the Laser Research Institute of Shandong Academy of Sciences, Liaocheng Industrial Technology Research Institute and Shandong Kechuang Group Co., Ltd., the company has a multi-disciplinary innovation team composed of doctoral students in optics, mechanics, electronics, computers, materials science, etc.
FAQ
Q1. Is professional protection required?
A: Laser protective glasses are standard.
Q2. How to choose a suitable laser cleaning machine?
A: You can send us the materials and requirements to be cleaned, and we will help you choose the appropriate power.
Q3. What is the difference between laser cleaning and traditional cleaning methods?
A: Traditional cleaning methods usually use chemical solvents, abrasives, etc., which have problems such as secondary pollution, great impact on the environment, and low efficiency. Laser cleaning has higher precision, efficiency and environmental friendliness.
