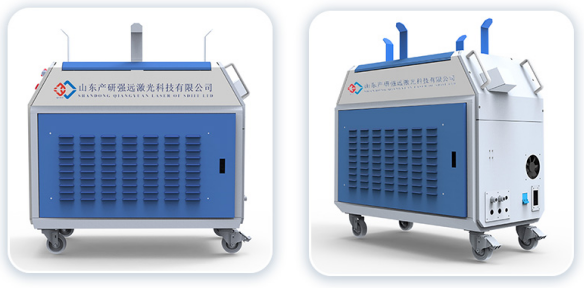

500W Solid State Pulsed Laser Cleaning Machine
A solid-state laser is a laser that uses a gain medium that is a solid, rather than a liquid as in dye lasers or a gas as in gas lasers.
500W Solid State Pulsed Laser Cleaning Machine
Product Descirption
Adopt self-developed high energy and high frequency pulsed Nd: YAG solid-state laser, the beam is dense and smooth. The equipment adopts unitized wood block design, the control system board is self-developed, and the equipment parameters can be monitored remotely to improve the equipment damage warning capability and stability. Laser output system can be selected from 1D, 2D and 3D control system to achieve precise cleaning.
Product Parameters
| QYCL-SP500 | ||
| Components | L aser source | MAX |
| Cooling system | S&A | |
| Cleaning head | SDQY | |
| Control system | SDQY | |
| Specifications | Laser type | Solid-State laser/DPL |
| Laser power (W) | 500 | |
| Power adjustment range (%) | 10-100 | |
| Output central wavelength (nm) | 1080(±10) | |
| Monopulse energy (mJ) | 50 | |
| Power supply (VAC) | 220 | |
| Rated power (kW) | 7 | |
| Scan width (mm) | 10-100 | |
| Fiber length (m) | 10 (Optional to 15) | |
| Cooling method | Water cooling | |
| Dimension L*W*H (mm) | 935*495*1010 | |
| Weight (kg) | 110 | |
Product Details
Laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.
Product Application
Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes the surface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.
Application range:
1. Derusting of metal surface;
2. Surface paint removal and paint removal treatment;
3. Surface oil, stains and dirt cleaning;
4. Surface plating and coating removal;
5. Pretreatment of welding surface/spraying surface;
6. The dust and attachments on the surface of the stone statue are removed;
7. Cleaning of rubber mold residues.
Our Service
1. two years warranty
2. 24 hours professional online technical support.
3. Skilled engineer will help customer to solve the problem by TM ,Whatsapp in time when problem happen.
4. Free software update.
5. Lifelong maintenance and spare parts supply.
FAQ
Q :How about warranty?
A. 2 years quality guaranty, the machine with main parts shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q:I don't know which one is suitable for me ?
A:Please tell me what material you need to clean,such as rust,paint,oil and ect.and how much thickness of this on surface of product?
Q: How much will it cost shipping to my country?
A:Please tell me your nearest port or your location,then i will confirm to our forwarder.then I can tell you how much it will cost.
Q:How long is the delivery time?
A: For standard machines, it would be 7-10 days; For non-standard machines & customized machine according to client s specific requirements, it would be 15 to 30 days.
Q:How about the packaging ?
A:All of our machine packed with water proof thin plastic inside and plywood box, free from fumigation,outside the machine, and wrapped with stainless steel belt on the packages.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
