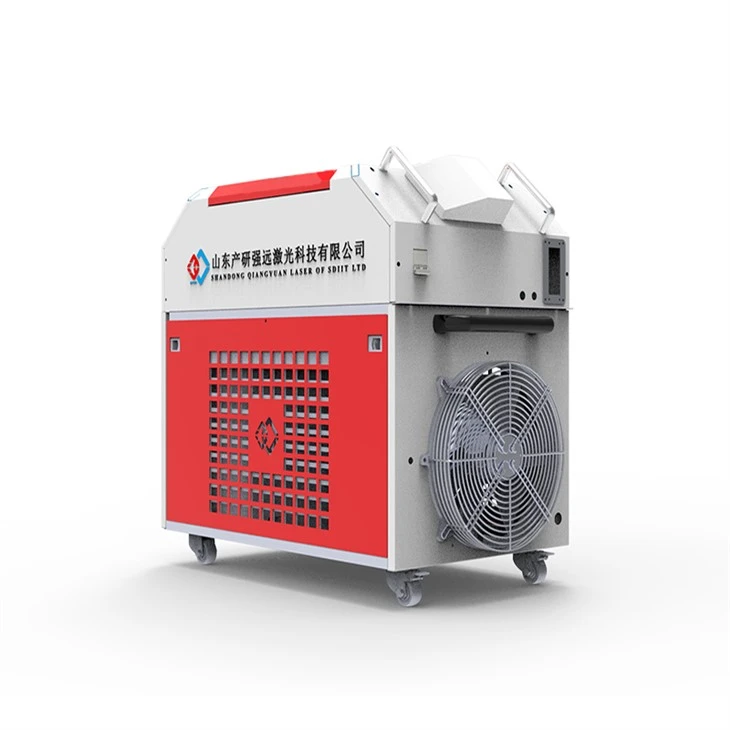

1500W Laser Welding Machine
Products Description
Laser welding machine applies the way of non-contact welding, which is a new type of welding method. In the processing process, high-energy laser pulses find application in locally heating the material in a small area. The energy of the laser radiation diffuses into the material through thermal conduction. And then the melted material will form a specific molten pool.
Advantages
Better Price
Shipment of 100 machines per month, low wholesale price.
Lower MOQ
Save you more and generate higher profiatbility with 1 MOQ.
Safety Guaranteed
In line with ISO, CE standards, strict production, quality assurance.
Specification
|
Model |
QYWL-FC1500 |
QYWL-FC2000 |
QYWL-FC3000 |
|
Hand-held head |
Single pendulum welding head (optional wire filling device) |
||
|
Weight of hand-held head (kg) |
0.8 |
||
|
Laser power (w) |
1500 |
2000 |
3000 |
|
Rated power (kw) |
6.6 |
9.6 |
12.6 |
|
Power adjustment range (%) |
10-100 |
||
|
Central wavelength (nm) |
1060-1070 |
||
|
Cooling method |
Water Cooling |
||
|
Fiber length (m) |
10 (Optional 5/15) |
20 |
|
|
Type of laser source |
Continuous wave |
||
|
Dimension of machine (mm) |
917*490*750 |
1110*490*750 |
1240*510*1040 |
|
Weight of machine (kg) |
115 |
130 |
190 |
|
Power supply (V) |
220 |
380 |
|
Details
high-quality core components
portable welding head
universal wheel movable structure
open functional design
Application
Transportation
Electronic Equipment
Energy Industry
Why Choose SDQY LASER
1. Professional Manufacturer
With years of experience in laser technology research and development and manufacturing, SDQY LASER provides reliable industrial laser equipment, favored by customers worldwide.
2. Rigorous Quality Control
Every machine undergoes comprehensive performance testing before leaving the factory to ensure stable and reliable operation.
3. Global Technical Support
Our experienced engineers provide:
Installation guidance
Online technical support
Operation training
Lifetime technical support
Spare parts supply
fAQ
Q1. Can beginners operate the machine?
A: Yes. The handheld laser welding system is designed for ease of use. With proper safety training, operators can quickly learn the welding process.
Q2. Does it support aluminum welding?
A: Yes. The machine can weld aluminum and aluminum alloys when the appropriate process parameters are used.
Q3. Is wire feeding available?
A: Yes. An automatic wire feeder is available as an optional accessory for larger gaps or specific welding requirements.
Q4. Can the machine be customized?
A: Absolutely. SDQY LASER provides customized solutions based on your materials, production requirements, voltage standards, and automation needs.
