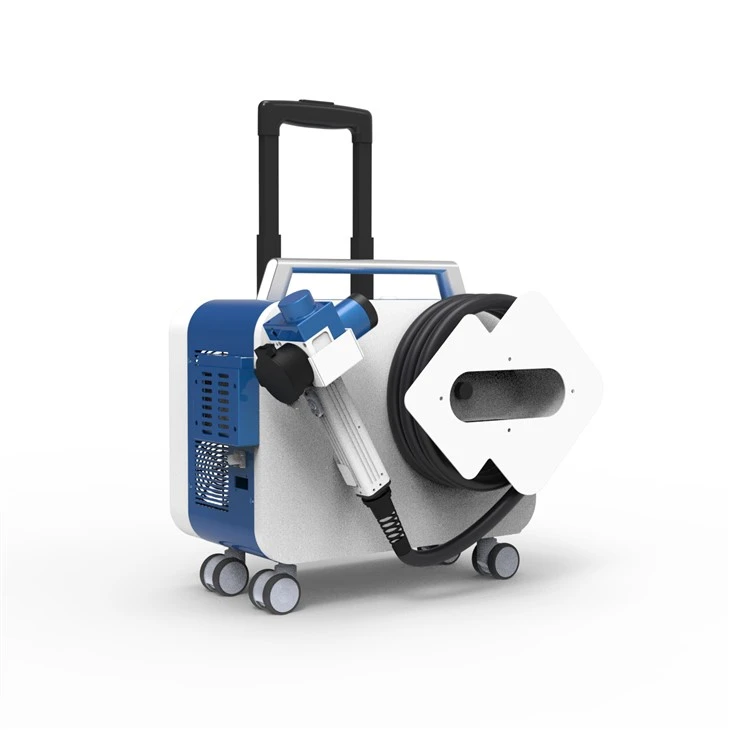

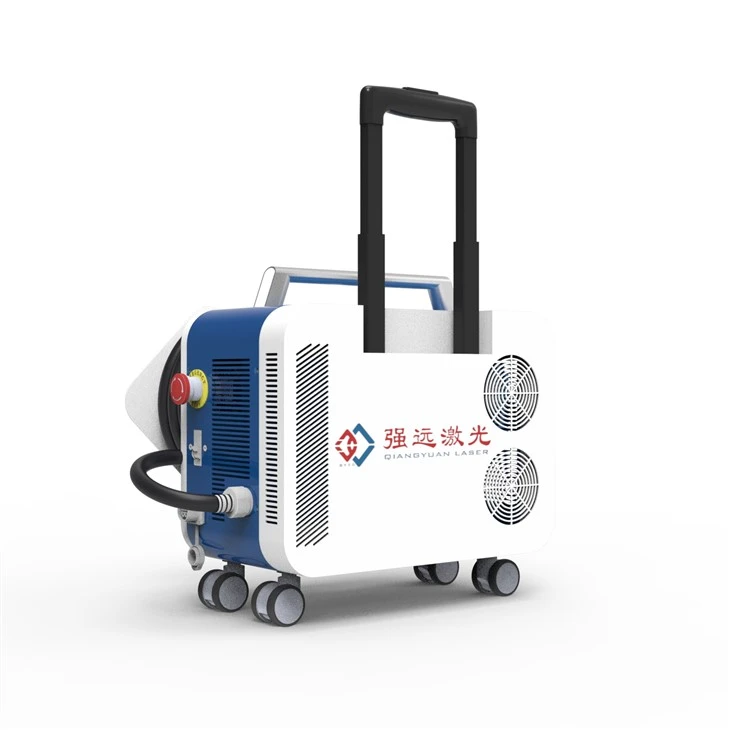

100w Pulse Laser Cleaning Machine
Product Description
The 100 watt portable pulse laser cleaning machine is designed for outdoor/high altitude and precision cleaning. It uses advanced fiber laser technology, does not require chemicals, and does not generate dust. It can quickly remove rust, paint, and oxide layers on the metal surface, and accurately protect the substrate from damage. The whole machine weighs less than 19kg and is suitable for complex scenarios such as ship repair, mold maintenance, and cultural relic restoration.
Product Parameters
|
Model |
QYCL-FP100 |
|
Average laser power (w) |
100 |
|
Type of laser source |
Pulse laser |
|
Output fiber type |
QCS |
|
Single pulse energy (mJ) |
1.8 |
|
Central wavelength (nm) |
1060~1070 |
|
Rated power (w) |
600 |
|
Power adjustment range (%) |
10~100 |
|
Focal distance (mm) |
160/210/330/420 (optional) |
|
Cooling method |
Air Cooling |
|
Fiber length (m) |
5 (optional 10) |
|
Weight of machine (kg) |
19±2 |
|
Dimension of machine (mm) |
500 X 438 X302 |
|
Working temperature (℃) |
0~40 |
|
Voltage (V) |
220 |
Product Details
Luggage structure design
Small size, light, easy to carry, battery/external power supply two modes can be selected freely, it's not only suitable for small spaces, high altitude, field operations, etc., but also suitable for factory workshop operations.
Portable cleaning terminal
2D galvanometer structure, multi-pattern cleaning solution, small cleaning head is small and light, timely alarm, safe and reliable.
High-quality core components
Raycus/MAX/JPT/IPG laser, famous brand, customized Schneider/Omron/Chint First-class electrical brand, safe, stable and reliable.
Open functional design
Anti-mis-touch design, support parameter power-off save and process parameter custom storage function.
Product Advantages
1. Portable Luggage Design
The compact suitcase design, equipped with 360° omnidirectional wheels, facilitates transport between the workshop and work site.
2. Precise Cleaning, No Damage
High-energy pulsed laser technology removes rust, paint, oil, oxide layers, and contaminants while protecting the original surface of the substrate.
3. Environmentally Friendly, No Chemical Additives
No chemicals, abrasives, or cleaning supplies are required. Minimal waste is generated, providing a cleaner and safer working environment.
4. Non-Contact Cleaning Process
Laser cleaning avoids mechanical contact with the workpiece, preventing scratches and surface damage during the cleaning process.
5. Easy Operation, Quick Setup
The user-friendly touchscreen interface and adjustable laser parameters allow operators to quickly adjust cleaning parameters.
Product Application
Packing & Shipping
Company Profile
Shandong Qiangyuan Laser Of Sdiit Ltd. (SDQY LASER) specializes in the research and development and manufacturing of laser cleaning/welding/cutting/cladding equipment. Relying on the technical strength of the Shandong Academy of Sciences Laser Institute, the company has assembled a multidisciplinary team of PhDs, achieving an overall technical level that is internationally advanced. We hold over 60 patents and have passed ISO9001, ISO14001, ISO45001, CE, EAC, and FDA certifications.
Our core products include pulsed laser cleaning machines (100W/200W/300W/500W/1000W) and continuous laser cleaning machines (1500W/2000W/3000W/6000W). We welcome you to contact us for more product details.
