Laser Rust Removal Machine 100w
Products Description Laser cleaning machine can remove the object surface resin, the paint, the oil pollution, stains, dirt, rust, and oxide coatings.It is widely used in the industry, covering ships, steam repairs, rubber molds, automotive industry, high-end machine tools, track and...
Products Description

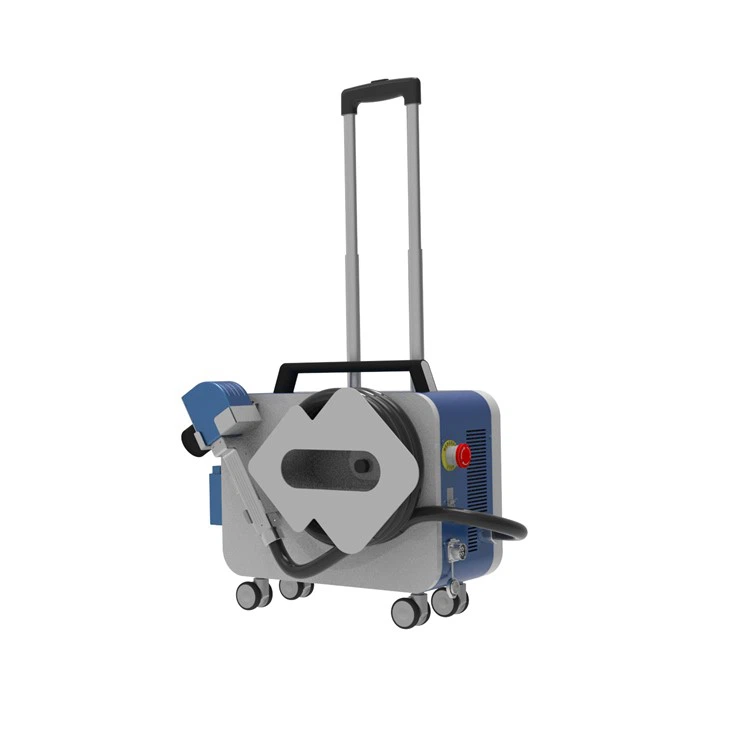

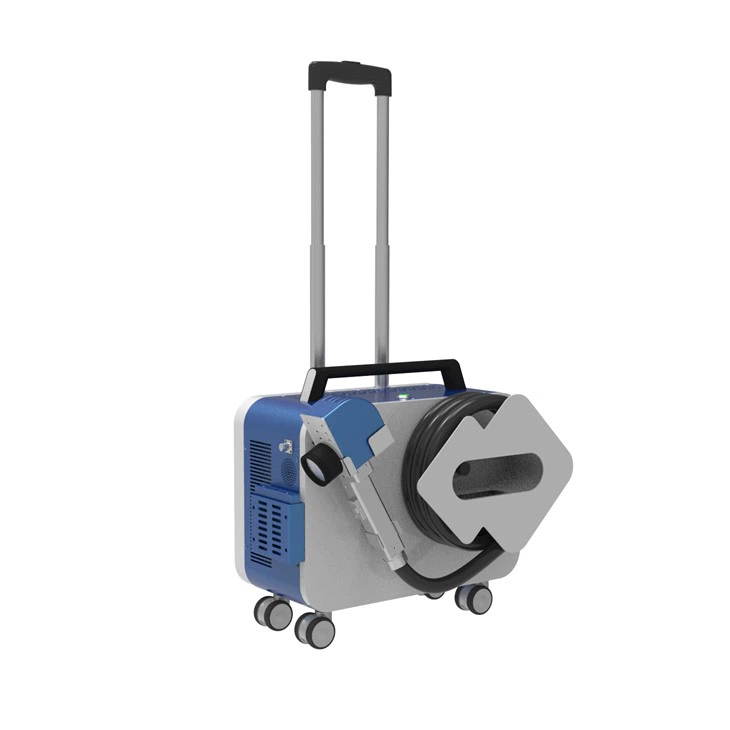

The SDQY LASER 100W Laser Rust Removal Machine is a compact pulsed fiber laser cleaning system designed for precision rust removal and delicate surface treatment. It efficiently removes rust, oxidation, paint, oil, grease, coatings, carbon deposits, and other contaminants without damaging the underlying material.
Details
01

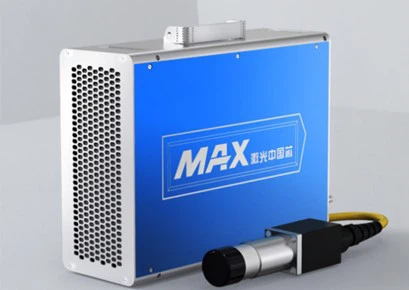

Max Laser Source
02
Portable cleaning terminal
03
Open functional design
04
Suitcase structure design
Specification
|
Model |
QYCL-FP100 |
|
Average laser power (w) |
100 |
|
Type of laser source |
Pulse laser |
|
Output fiber type |
QCS |
|
Single pulse energy (mJ) |
1.8 |
|
Central wavelength (nm) |
1060~1070 |
|
Rated power (w) |
600 |
|
Power adjustment range (%) |
10~100 |
|
Focal distance (mm) |
160/210/330/420 (optional) |
|
Cooling method |
Air Cooling |
|
Fiber length (m) |
5 (optional 10) |
|
Weight of machine (kg) |
19±2 |
|
Dimension of machine (mm) |
500 X 438 X302 |
|
Working temperature (℃) |
0~40 |
|
Voltage (V) |
220 |
Why Choose SDQY LASER 100W Laser Rust Removal Machine?
1. High Precision Cleaning
The pulsed laser precisely removes contamination while protecting the original surface finish.
2. No Damage to Base Material
Laser parameters can be adjusted for different materials, ensuring safe cleaning even on delicate components.
3. Portable Lugagge Design
Compact and lightweight design allows operators to transport the machine easily between workshops and job sites.
4. Easy Operation
The intuitive touchscreen interface allows operators to quickly switch between cleaning modes and save parameter settings.
Application
1. Outside package: Strong wooden case.
2. Inner package: Waterproof plastic film packaging with foam protection in each corner solid seaworthy wood box package.
Why Choose SDQY LASER?
- Professional laser equipment manufacturer
- Experienced engineering team
- Strict quality inspection
- Global export experience
- OEM & ODM support
- Technical training
- Lifetime technical support
- Fast spare parts supply
Everything You Need to Know
How to choose a machine?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you professional solutions and suggestions.
How to use the machine?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
About warranty
If there is a problem with the machine, we will provide parts for free during the machine warranty period. At the same time, we also provide free lifetime after-sales service.
