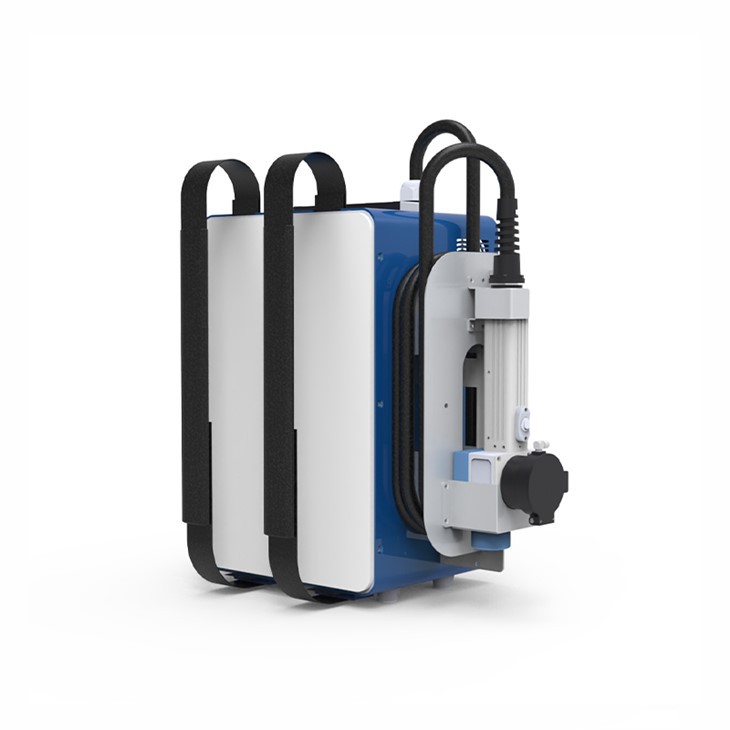

50w 100w Backpack Pulsed Laser Cleaning Machine
Our latest backpack laser cleaning machine has 50w and 100w. We are a laser cleaning machine factory with independent R&D and production, and our machines are sold to all continents. We are expecting to become your long team partner in China.
Product Description
With battery, only 14/16KG, good for outdoor rust, coating, dirt removal! It comes with 50w/100w Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.
Product Specification
|
Model |
QYCL-FP50C |
QYCL-FP100C |
|
Laser power (w) |
50 |
100 |
|
Single pulse energy (mj) |
1.1 |
1.6 |
|
Weight of hand-held head (kg) |
1 |
|
|
Rated power (kw) |
0.5 |
0.6 |
|
Power adjustment range (%) |
10-100 |
|
|
Width of scanning (mm) |
100*100 |
|
|
Focal length (mm) |
100/160/260 |
|
|
Central wavelength (nm) |
1060~1070 |
|
|
Cooling method |
Air Cooling |
|
|
Fiber length (m) |
3 |
|
|
Type of laser source |
Pulsed fiber laser |
|
|
Battery |
Lithium battery(24V 25Ah) |
|
|
Battery life |
2.8 |
1.6 |
|
Dimension of machine (mm) |
260*190*415 |
|
|
Weight of machine (kg) |
14±0.5 |
16±0.5 |
|
Power supply |
220V |
|

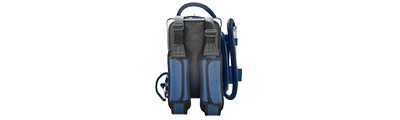

Product Details
Portable cleaning terminal
Two-dimensional galvanometer structure, multi-pattern cleaning solution, small cleaning head is small and light, timely alarm, safe and reliable.
Rechargeable battery structure
Built-in Korean Samsung high-capacity battery and protection circuit, safety and reliable, it can work at full power 2.5 hours or more. Snap-on installation and the power display can observe the power at any time.
Open functional design
Features
1) Backpack systel, supply with battery, compact structure and light weight, suitable for outdoor cleaning.
2) Hand-held operation, light scanning head, easy to operate for a long time.
3) Save Energy, protect the environment, no secondary waste.
4) Non-contact cleaning, no damage on matrix material after cleaning.
5) Off-line operation, no need computer and any edition for the file.
6) Cleaning width can be adjustable from 10-100mm easily.
7) No consumption, almost free maintenance.
Application
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.
company Profile
Shandong Qiangyuan Laser of SDIIT Ltd, with a registered capital of USD 12 million, is a high-tech innovation enterprise focusing on the R&D, production, sales and comprehensive solutions of laser cleaning / welding / cladding / cutting equipment. The company has a technical innovation team composed of optics, machinery, electronics, computers, materials science and other disciplines. The company has more than 30 core independent intellectual property rights in China and abroad in laser cleaning / welding / cladding / cutting key core devices, process methods, intelligent control and complete automation solutions.
FAQ
Q1: Can you give us a better price?
A1: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A2: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A3: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A4: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A5: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate.
