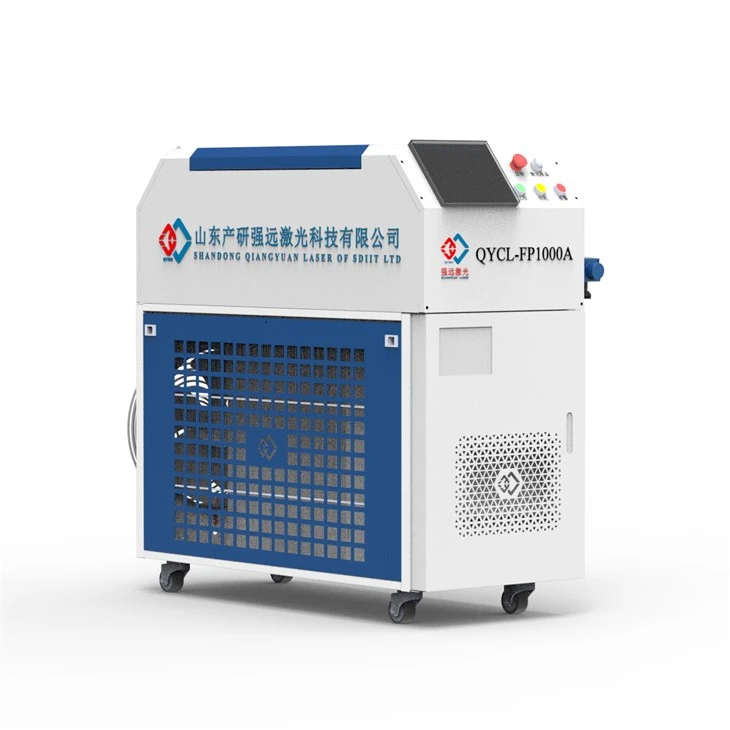

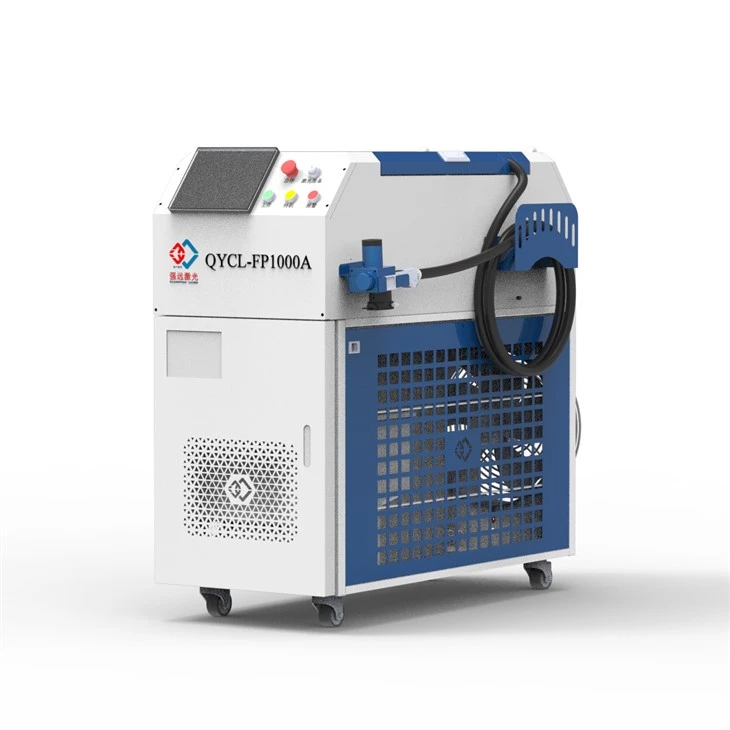

1000W Top Hat Pulsed Laser Cleaning Machine
1000W Hand-held laser cleaning equipment uses optical fiber to transmit high-energy-density laser. The hand-held cleaning head emits light to clean the oxide layer, paint, weld, etc. on the surface of metal materials such as carbon steel, stainless steel, and aluminum alloy. The operation is flexible and convenient. Compared with traditional cleaning methods such as ultrasonic wave, chemical corrosion and mechanical friction, hand-held laser cleaning has the advantages of no damage to the parts substrate, no consumables, energy saving and environmental protection, and high efficiency. It can remove resin, oil, stain, dirt, rust, coating on the surface of the workpiece , coating, paint, to meet the cleaning requirements of complex modeling and fine positioning in the field of industrial processing with higher cleanliness cleaning effect and lower overall cost of production efficiency. Mainly used in mold industry, rail transit, shipbuilding industry, petrochemical pipeline, mechanical parts renovation, automobile manufacturing, cultural relic restoration and other industries.
Products Description
1000W pulsed laser cleaning equipment uses optical fiber to transmit high-energy-density laser. The hand-held cleaning head emits light to clean the oxide layer, paint, weld, etc. on the surface of metal materials such as carbon steel, stainless steel, and aluminum alloy. The operation is flexible and convenient.
Compared with traditional cleaning methods such as ultrasonic wave, chemical corrosion and mechanical friction, hand-held laser cleaning has the advantages of no damage to the parts substrate, no consumables, energy saving and environmental protection, and high efficiency. It can remove resin, oil, stain, dirt, rust, coating on the surface of the workpiece , coating, paint, to meet the cleaning requirements of complex modeling and fine positioning in the field of industrial processing with higher cleanliness cleaning effect and lower overall cost of production efficiency.
specification
|
Model |
QYCL-FP1000A |
|
Average laser power (w) |
1000 |
|
Output method |
QBH |
|
Type of laser source |
Pulsed fiber laser |
|
Single pulse energy (mj) |
50 |
|
Weight of hand-held head (kg) |
1.5 |
|
Rated power (kw) |
10 |
|
Power adjustment range (%) |
10-100 |
|
Width of scanning (mm) |
10-100 |
|
Focal length (mm) |
160/254/330/420 (optional) |
|
Central wavelength (nm) |
1060~1070 |
|
Cooling method |
Water cooled |
|
Fiber length (m) |
10m |
|
Dimension of machine (mm) |
1240*510*1040 |
|
Weight of machine (kg) |
235±5 |
|
Power supply (V) |
380 |
Details
Stable cooling system
With two temperature control modes, suitable for different use occasions; Dual independent temperature control mode to meet the different laser source and laser head cooling needs; Stable cooling, simple operation
SDQY cleaning system
The system is stable and reliable, compact structure, accurate optical path, good sealing, delicate appearance, light weight and easy installation.
High security, wit password login, temperature protection, off-line protection and other multi-level security mechanism. Supports multiple language Settings.
Application
Our Service
01.
7*24 hour.
02.
Response time<12 hours.
03.
Online support.
04.
Product replacement.
05.
Customer field service.
06.
Backup products during repairing for long time cooperators.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7-15 days. For mass production, the lead time is 30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.
