500w Top Hat Pulsed Laser Cleaning Machine
The 500W laser cleaning machine is a high-tech cleaning machine that uses high-power beams to remove dirt and oxide layers on the surface of most objects and effectively improve the cleaning effect. Laser cleaning technology has no toxicity and pollution, and is environmentally friendly and pollution-free. We can use it in threatened clean environments, such as food factories, hospital wards and other sensitive places are very suitable. Compared with the traditional cleaning method, the 500W laser cleaning machine is more convenient and efficient, saves time, and will not cause more wear and damage to the surface. It is easy to carry and can be used anytime, anywhere.
Products Description
The 500W laser cleaning machine is a high-tech cleaning machine that uses high-power beams to remove dirt and oxide layers on the surface of most objects and effectively improve the cleaning effect.
Laser cleaning technology has no toxicity and pollution, and is environmentally friendly and pollution-free. We can use it in threatened clean environments, such as food factories, hospital wards and other sensitive places are very suitable.
Compared with the traditional cleaning method, the 500W laser cleaning machine is more convenient and efficient, saves time, and will not cause more wear and damage to the surface. It is easy to carry and can be used anytime, anywhere.
details
1. High Quality Core Components
MAX/Raycus/JPT/IPG laser source, first class brand, it can be customized.
Schneider/Omron/Chint famous electrical brand, safe, stable and reliable.
2. Portable Cleaning head
Ergonomic design, hand-held or with automation equipment. With quick connector, easy operation, professional air pipe design it's better protect the optical lens, suitable for various complex cleaning conditions.
3. Integrated Appearance Design
Integrated embedded water cooler, with 360° silent universal wheels, easy to move. Equipped with a separate fiber box.
4. Open Functional Design
Independent R&D, visual customizable multi-language touch control panel.
Support a variety of industrial bus communication protocols, it can meet customer's automatic control design.
Specification
|
Model
|
QYCL-FP500A
|
|
|
Laser power (W)
|
500
|
|
|
Single pulse energy (mJ)
|
50
|
|
|
Rated power (kW)
|
7.5
|
|
|
Power adjustment range (%)
|
10-100
|
|
|
Scan width (mm)
|
10-100
|
|
|
Output central wavelength (nm)
|
1060~1070
|
|
|
Work system
|
Fiber
|
|
|
Out system
|
QBH
|
|
|
Cooling system
|
Water cooling
|
|
|
Water Temperature (℃)
|
22~26
|
|
|
Fiber length (m)
|
5m (Option 10m)
|
|
|
Laser source type
|
Fiber
|
|
| Weight (kg) |
205
|
|
| Size (mm) |
1237*505*1105
|
|
|
Work Temperature (℃)
|
0-40
|
|
|
Voltage (V)
|
380
|
|

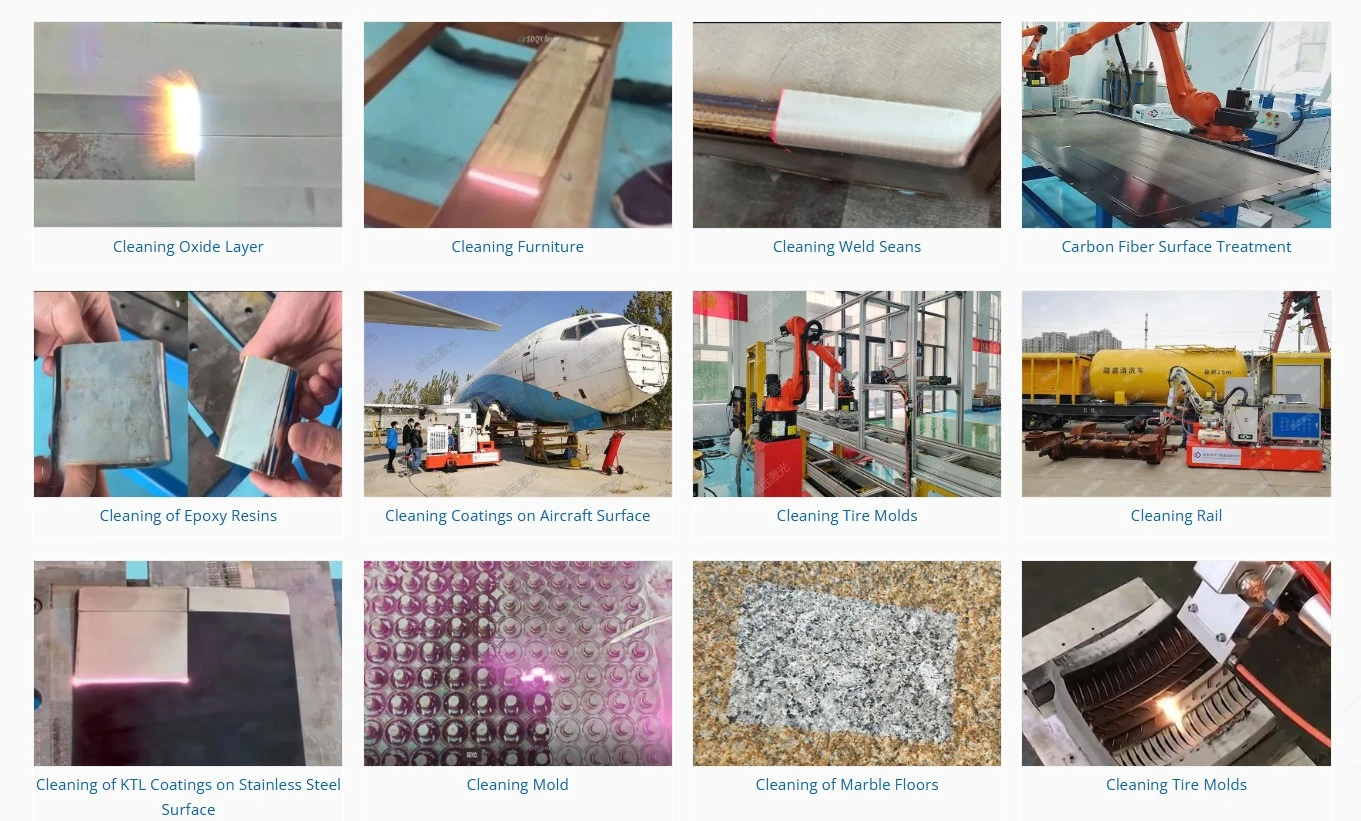

Product Application
