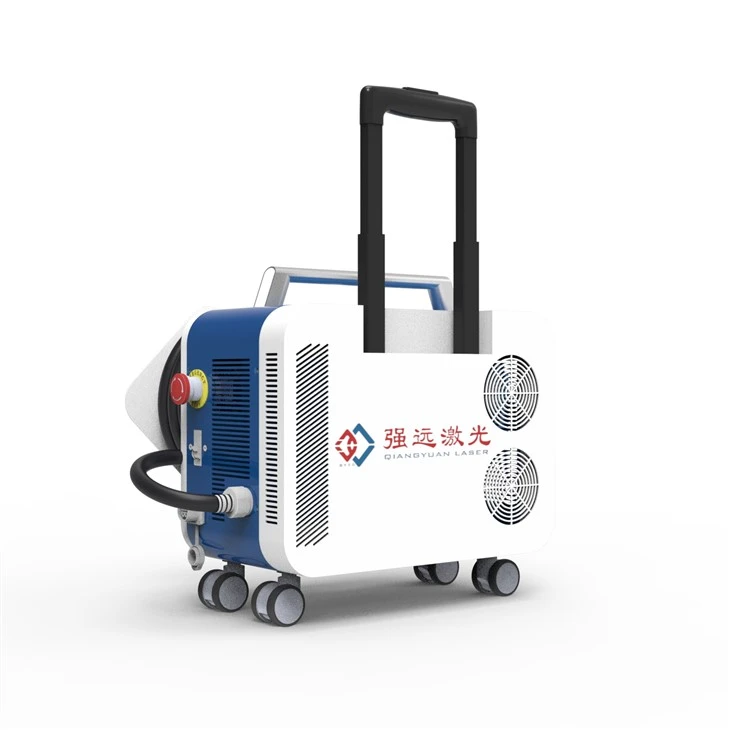

300W Laser Paint Cleaner
SDQY Laser will do our best to supply good products and provide the most professional solution for every partner.
Product Description
The 300W Laser Paint Cleaner use Gaussian-beam 300W pulse laser cleaning system, specially designed for industrial precision cleaning.
Integrated trolley case design, easy to move. It can non-destructively peel off rust, paint, and oxide layers, achieving millimeter-level precision cleaning with zero damage to the substrate.
Product Advantages
1. The 300w laser paint cleaner machine adopt portable luggage design, with an aluminum alloy casing that is pressure-resistant, shock-resistant, and wear-resistant. Its carry-on design meets the carrying standards for high-speed trains and airplanes.
2. The cleaning head is extremely lightweight, 1kg only , and can be operated by hand for a long time.
3. With red light assist for focusing, the focus position can be adjusted according to different scene lenses.
4. Pulse fiber laser source do not damage substrates and are suitable for cleaning the surfaces of precision parts.
Product Parameters
|
QYCL-FP300 |
||
|
Components |
Laser source |
MAX |
|
Cleaning head |
SDQY |
|
|
Control system |
SDQY |
|
|
Specifications |
Laser type |
Pulsed fiber laser |
|
Laser power (W) |
300 |
|
|
Power adjustment range (%) |
10-100 |
|
|
Output central wavelength (nm) |
1060-1070 |
|
|
Monopulse energy(mJ) |
1.8 |
|
|
Power supply (V) |
220 |
|
|
Rated power (kW) |
1.1 |
|
|
Scan width (mm) |
0-100 |
|
|
Fiber length (m) |
5 |
|
|
Cooling method |
Air cooling |
|
|
Dimension L*W*H (mm) |
500*438*302 |
|
|
Weight (kg) |
19 |
|
Product Details

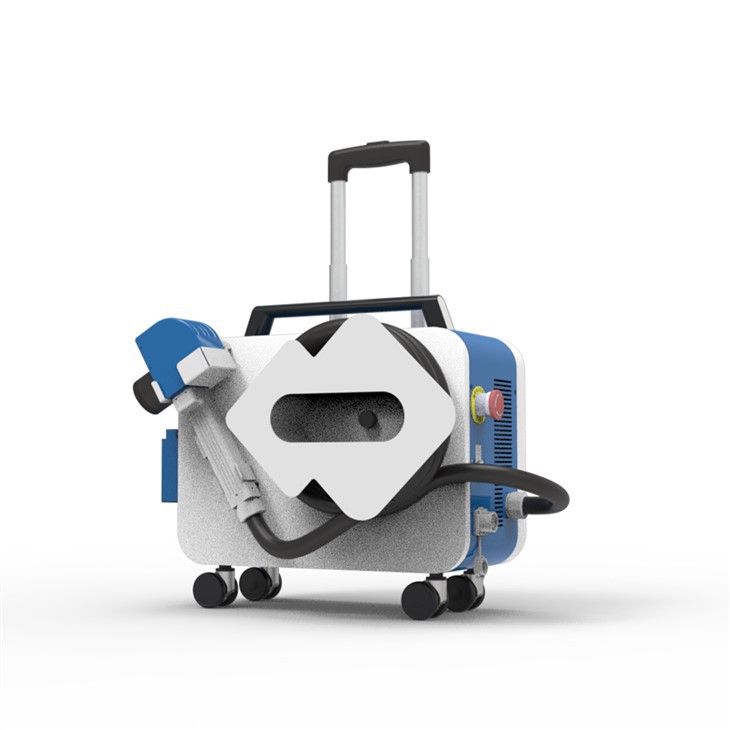

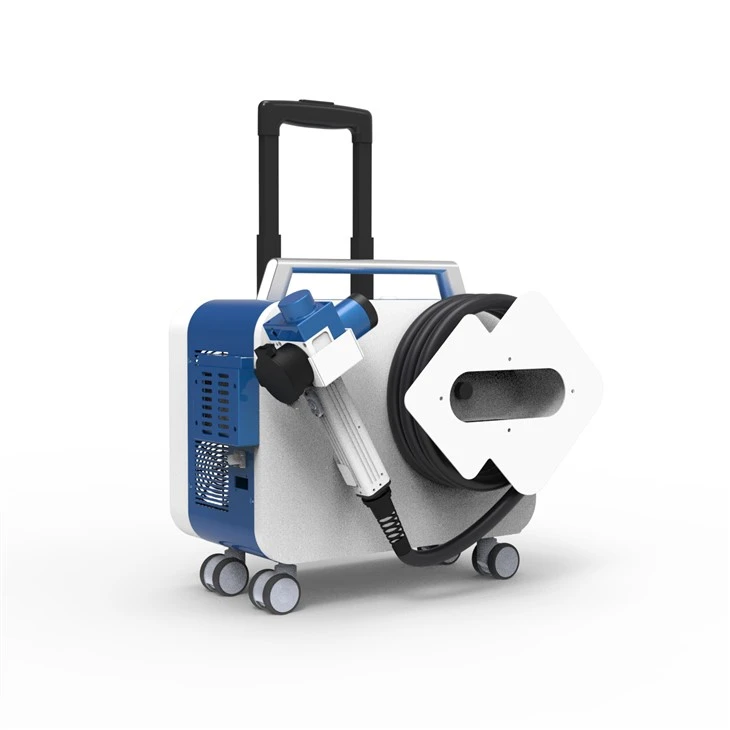

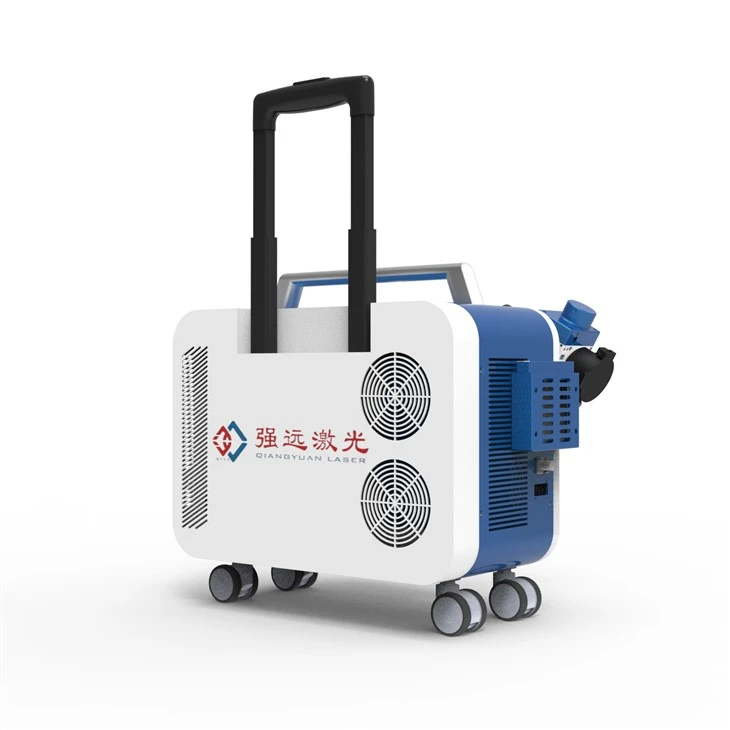

Trolley Case Design
Trolley case design with directional wheels at the bottom of the case, making the small mini pulse laser cleaner more portable and convenient.
Handheld Design
Red light assisted focusing technology can adjust the focus position according to different field lenses. Safety lock design and tilt protection system.
Product Application
Portable and lightweight, flexible and adjustable parameters, wireless control, etc., which can efficiently remove rust, stains, and oil on the surface of the workpiece, Plating, etc.
Can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries.
With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
FAQ
Q1: Is a professional operator required?
A: After-sales engineers provide training, and novices can operate after 2 hours of training.
Q2: Is it sensitive to the color of the substrate?
A: Adaptive wavelength technology, dark metal cleaning efficiency reaches 98%.
Q3: Equipment maintenance cost?
A: Modular design, optical component life ≥ 100,000 hours, only protective lenses need to be replaced regularly.
