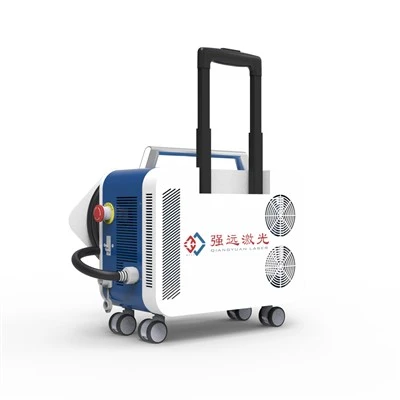

1000W Laser Surface Cleaner

The continuous laser cleaning machine can be used for metal surface cleaning, metal surface paint removal, surface stain and rust cleaning, surface coating cleaning, etc., with large cleaning area and high efficiency.

Send Inquiry

Add To Inquiry

Products Description

This high-power laser cleaning machine boasts high pulse energy, making it ideal for cleaning objects with thick coatings or severe corrosion. The pulsed fiber laser cleaning machine can also be equipped with automation equipment and a robotic arm for automated cleaning, improving processing efficiency.

Laser cleaning is a new non-contact surface cleaning technology that utilizes a low-power, high-energy-density pulsed laser beam to target the workpiece surface, instantly vaporizing or thermally expanding surface stains, oxides, or coatings, thereby achieving surface cleanliness and purification. Compared to traditional methods, it offers advantages such as environmental friendliness, the absence of abrasion, and a lack of thermal effects, making it a unique advantage in precision workpiece cleaning.

The 1000-watt pulsed laser cleaning machine features advanced technology, user-friendly design, flexible operation, low energy consumption, and environmental friendliness, making it highly practical and user-friendly. It requires no chemicals, media, dust, or water to begin cleaning. Its autofocus allows for precise surface cleaning, removing resin, stains, rust, coatings, paint, and other materials with high cleanliness.

Features

1. Non-contact cleaning, does not damage the part substrate.
2. Precise cleaning, can achieve precise location, the exact size of the selective cleaning.
3. Laser cleaning without any chemical cleaning fluid, no supplies, safety and environmental protection.
4. Simple operation, power can be hand-held or with the robot to achieve automated cleaning.
5. Cleaning efficiency is very high, save time.
6. Laser rust removal machine is stable, almost no maintenance.

Parameters

Model	QYCL-FP1000A
Average laser power (w)	1000
Output method	QBH
Type of laser source	Pulsed fiber laser
Single pulse energy (mj)	50/100
Weight of hand-held head (kg)	1.5
Rated power (kw)	10
Power adjustment range (%)	10-100
Width of scanning (mm)	10-100
Focal length (mm)	100/160/254/330/420 (optional)
Central wavelength (nm)	1060~1070
Cooling method	Water cooled
Fiber length (m)	10m
Dimension of machine (mm)	12375051105
Weight of machine (kg)	235±5
Power supply (V)	380
