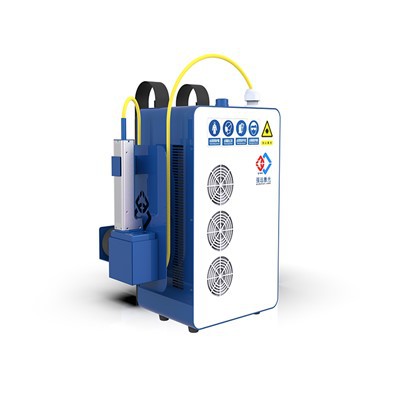

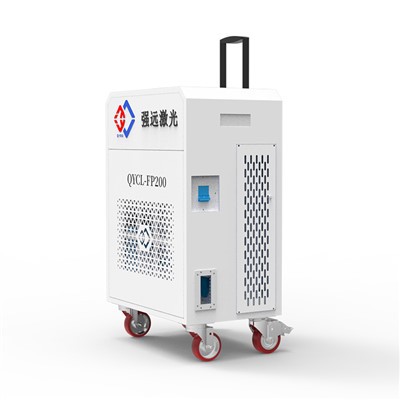

Top-hat Pulse Laser Cleaning Machine (Air Cooled)
Products Description 200w, 300w 500w This machine uses a pulsed fiber laser and is equipped with a self-developed intelligent control system. The laser pulse frequency and width are adjustable, red light assists in focusing, and the focus position can be adjusted according to different...
Products Description
This machine uses a pulsed fiber laser and is equipped with a self-developed intelligent control system. The laser pulse frequency and width are adjustable, red light assists in focusing, and the focus position can be adjusted according to different scenarios. Through the adjustment of laser parameters, a constant high peak power output can be achieved, which is suitable for a variety of cleaning scenarios.
Products Details
High-quality core components
MAX/Raycus/JPT/IPG laser, famous brand, customized Schneider / Omron / Chint First-class electrical brand, safe, stable and reliable.
Hand-held cleaning head
The T-shaped body has a built-in dynamic air curtain, which makes opening and unlocking the cover safer, removes dust, and prevents accidental touches; the knob can adjust parameters in real time, and the chamber temperature is displayed on the screen for early warning; the dual red light precision focusing system is suitable for cleaning curved surfaces/special-shaped parts.
Push-pull portable structure
The integrated handles on both sides are strong and space-saving. The 360° silent universal wheels make it easy to move.
Open function design
Visual multi-language touch screen, 8 cleaning graphics as standard, supports multiple industrial bus communication protocols, and has power-off parameter saving and laser alarm functions.
Products parameter
|
Model |
QYCL-FP200C |
QYCL-FP300C |
QYCL-FP500C |
|
Average laser power (w) |
200 |
300 |
500 |
|
Single pulse energy (mj) |
5 |
15 |
15/50 |
|
Rated power (kw) |
1 |
1.5 |
2.9 |
|
Power adjustment range (%) |
10-100 |
||
|
Width of scanning (mm) |
0~100 |
||
|
Focal length (mm) |
100/160/254/330/420 |
||
|
Central wavelength (nm) |
1060-1070 |
||
|
Cooling method |
Air Cooling |
||
|
Fiber length (m) |
5m |
10m |
|
|
Type of laser source |
Pulsed fiber laser |
||
|
Power supply (v) |
220V |
||
Products Features
1. Integrated compact design
The whole machine integrates laser, cleaning head and control system, with small size and light weight, which is easy to move and operate on site.
2. Air cooling system
Air cooling is used instead of traditional water cooling, eliminating the need for chiller maintenance.
3. Top-hat beam technology
The beam energy is distributed in a "flat-top" manner, acting evenly on the cleaning surface to avoid damage to the substrate caused by excessive central energy of the Gaussian beam, which is particularly suitable for fine cleaning.
4. Zero pollution operation
Non-contact physical cleaning does not produce wastewater, waste residue or chemical residue, and meets green manufacturing standards.
Products Application
Company Profile
Qiangyuan Laser is located in Shandong, China, and is a technology innovation company focusing on advanced laser solutions. We focus on the research and development, manufacturing and application of laser cleaning machines, laser cleaning heads and systems.
We serve industries such as industrial manufacturing and precision machining, providing reliable, efficient and cutting-edge laser products. We are committed to providing customized laser technology to help global partners improve productivity and enable new capabilities.
We rely on the strong technical strength and resource advantages of the Laser Research Institute of Shandong Academy of Sciences to promote innovation and support the advancement of global laser applications.
Laser Machine Factory in China
We provide continuous laser cleaning machine, pulse laser cleaning machine, laser welding machine,3 in 1 laser machine, laser cutting machine, laser cladding machine, and automation solutions..
