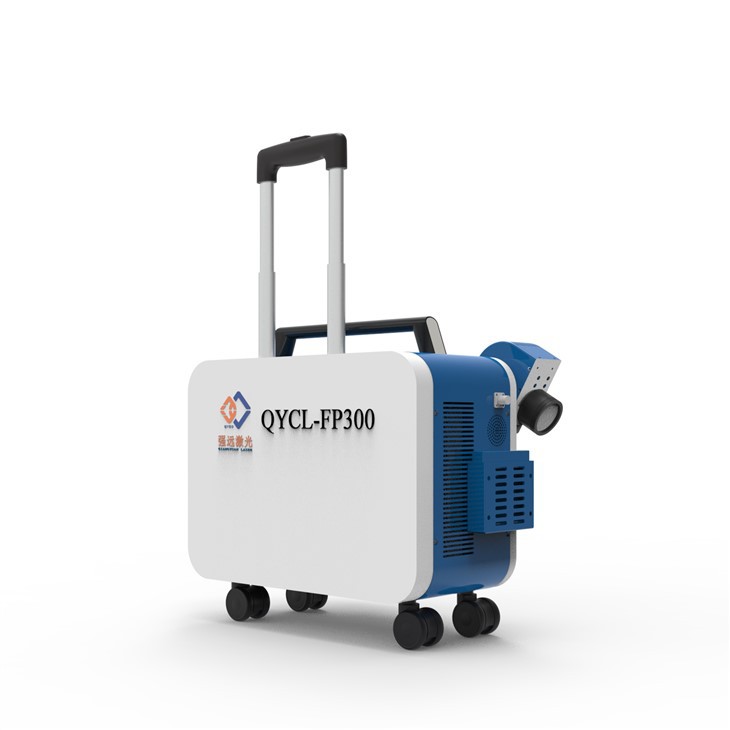

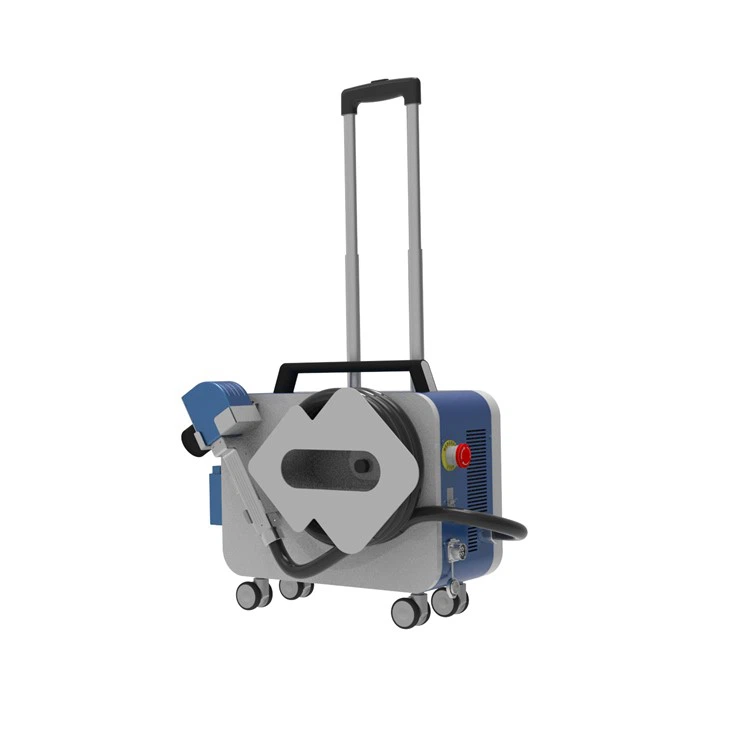

Pre Welding Laser Cleaning Machine
Whether it is spot welding, seam welding or projection welding, the surface of the workpiece must be cleaned before welding to ensure the quality of the joint is stable. Laser cleaning can remove the paint, oil and oxide film on the surface and can achieve environmental cleaning without harming the material of the workpiece.
Product Description
A pre-welding laser cleaning machine uses a laser to remove contaminants like rust, oil, and oxide layers from metal surfaces before welding, ensuring a cleaner and stronger weld. These machines are crucial for high-quality welding applications across various industries.
Machine parameters
|
Model |
QYCL-FP200 |
QYCL-FP300 |
|
Average laser power (w) |
200 |
300 |
|
Type of laser source |
Pulse laser |
|
|
Output fiber type |
QCS |
|
|
Single pulse energy (mJ) |
1.8 |
|
|
Central wavelength (nm) |
1060~1070 |
|
|
Rated power (w) |
800 |
1100 |
|
Power adjustment range (%) |
10~100 |
|
|
Focal distance (mm) |
160/210/330/420 (optional) |
|
|
Cooling method |
Air Cooling |
|
|
Fiber length (m) |
5 |
|
|
Weight of machine (kg) |
19±2 |
|
|
Dimension of machine (mm) |
500 X 438 X302 |
|
|
Working temperature (℃) |
0~40 |
|
|
Voltage (V) |
220 |
|
Main Features
1. No damage to the base of the material due to the no-touch surface cleaning performance.
2. Precise cleaning technic for the specific area in a selected area.
3. No need of chemistry or other added supplies.
4. Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm.
5. Small cleaning time consumption and comes with a good finishing result.
6. Stable and impacted integrated design which results to no extra maintenance.
