Precision Laser Vacuum Cleaning System
Precision laser vacuum cleaning system for cleaning fine metals or easily oxidized materials.

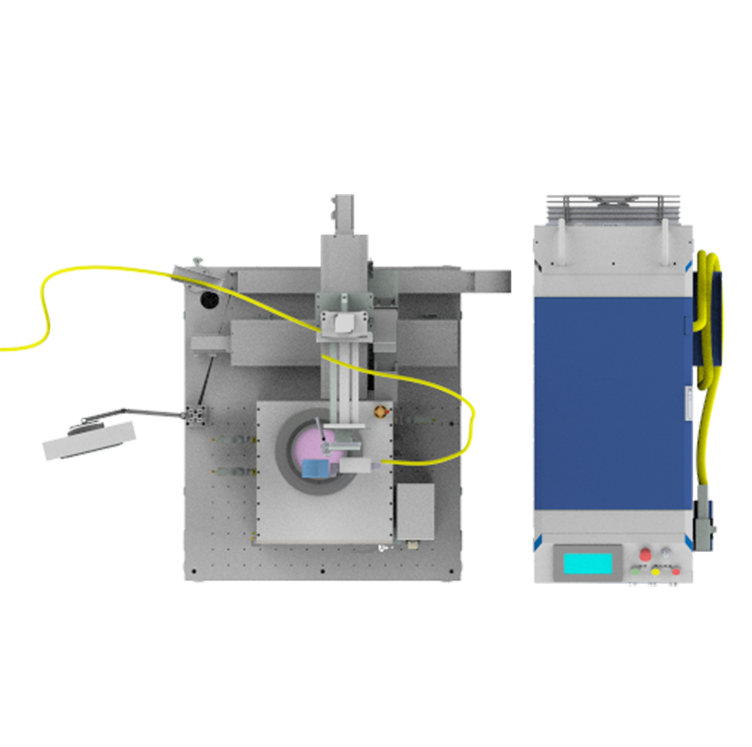

This product uses a QY-Precision Vacuum Cleaning series precision laser vacuum cleaning system that combines the QYHC18M-50 five-axis CNC operating system/CMTOS motion control system with the QYCL-FC3000 pulsed continuous laser cleaning system. This equipment is mainly used for metal, Surface rubber residues and ores are automatically cleaned or smelted. This laser device adopts dual laser cleaning and uses software-controlled light gates to integrate the cleaning width of its lasers. The end of the laser generator head is equipped with a safety lock and a blowing mechanism, and a professional laser chiller is used to cool the laser; the laser is integrated The result is that it is easy to replace and maintain, and the power adjustment range is 10%-100%; the vacuum box adopts a two-stage rotary vane vacuum pump with a small structure and beautiful appearance, and is specially designed for laser processing and metal processing machine tool configurations. The advantage is that automated cleaning reduces usage costs and labor costs. It has the characteristics of not damaging the workpiece substrate, high cleaning efficiency, and low labor intensity.
Advantages of Closed Vacuum Cleaning
1. Using a high-precision three-axis laser cleaning platform, it can meet the needs of laser cleaning of workpieces of different specifications and shapes;
2. Equipped with a rotating platform that can rotate at any angle 360° to facilitate workpiece cleaning;
3. The end of the cleaning head is equipped with a safety lock and air blowing mechanism;
4. The angle of the laser temperature measurement device can be adjusted
5. Equipped with a precision rotating platform, laser temperature measurement control system, and digital display air pressure instrument.
6. The stepper precision rotating platform has higher accuracy and less impact on quality, thus ensuring the quality of the products being cleaned.
7. Sealed inert gas cleaning can further reduce the oxidation of the workpiece, reduce the contact between raw materials and oxygen, and the cleaning effect is more obvious.
8. Built-in pushing mechanism to automatically push materials into the water tank after cleaning.
9. There is a pneumatic door between the water tank and the vacuum cleaning tank. When the material falls, the discharge door opens in advance and can be closed automatically after the material passes through.
Technical Specification
|
Overall Arrangement |
The whole system consists of a precision five-axis platform, laser cleaning machine, and vacuum cleaning box; |
|
Compressed Air |
Pressure ≥0.6MPa, air source requirements: dry, oil-free, clean; |
|
Place Environment |
No dust, no explosive or corrosive gases, no electromagnetic waves and high-frequency signal interference; |
|
Vacuum |
Reserve vacuum interface and ventilation interface, the pressure is lower than -0.1Mpa; |
|
Temperature Control System |
A special laser chiller is used to cool down the laser, and a self-developed laser control system is developed for SDQY Laser; |
|
Display Mode |
Temperature is displayed on the instrument panel; micro CNC system display panel |
|
Laser Machine |
Lens parameters: Model QYCL-FC3000, Name: Intelligent double pendulum handheld cleaning head |
|
Temperature Measuring Element |
Laser temperature measuring device; measuring temperature range -5 to 2400°C |
|
Operating temperature |
0~45℃, the room temperature should not be too high or too low to avoid affecting the accuracy of electrical components; |
|
Workpiece size |
Thickness: 2-88mm, length about 150mm, maximum width 150mm; workpiece placement platform diameter 190mm |
|
Laser Power |
3000W, adjustment range 10%~100%; |
|
Humidity |
Relative humidity is generally less than 70%; |
|
Dimensions and weight |
The furnace body of the equipment is about 1780mm high, 1740mm wide, and the net weight of the equipment is about 500kg; |
|
Machine Power Supply |
AC380V, 50Hz; rated power is about 12.6kw (subject to the final design) |
|
Implementation standards |
Fiber laser standard JBT12632-2016 Mechanical safety emergency stop design principle GB16754-2008/ISO13850:2006 |
|
Standard configuration |
Which parts are specifically equipped: Laser cleaning head protective lens: 1 piece Laser cleaning head focusing lens: 1 piece Protective lens: 160 diameter 2 pieces |
Sample
Certificate
Our company team has the support of Ph.D. and Laser Research Institute, with extensive knowledge and rich experience, and our technical level is always at the leading position.
