500w Air-Cooled Pulsed Laser Cleaning Machine
Apr 16, 2026
SDQY Laser's newly developed 500W air-cooled pulsed laser cleaning machine is grandly launched! With innovative design, it breaks through traditional limitations and provides a brand-new efficient, environmentally friendly and flexible solution for industrial cleaning.
This equipment is equipped with a 500W high-energy pulsed laser, which can quickly remove rust, oil stains, oxide layers, coatings and more on metal surfaces. The entire process is non-contact and non-damaging, perfectly protecting the base material. Its cleaning accuracy is far superior to traditional sandblasting and chemical cleaning methods, suitable for harsh cleaning environments such as precision molds and mechanical parts. The innovative air-cooled heat dissipation design eliminates the need for complex water-cooling devices, featuring lower energy consumption, more convenient maintenance and stable and reliable operation, completely getting rid of the cumbersome operation and maintenance of traditional cleaning methods.

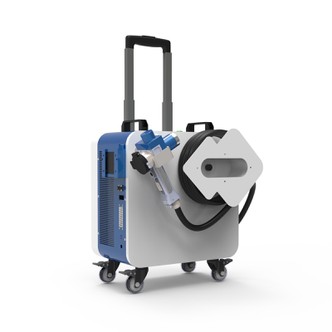

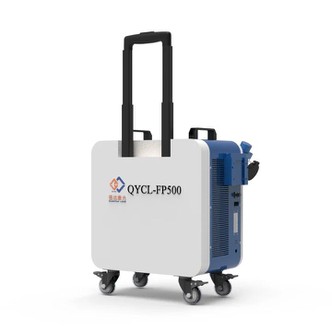

What's more groundbreaking is its trolley case structure, with a total weight of only 29 kilograms, which is light and portable. It can be easily carried and pulled by one person, truly realizing the mobile cleaning freedom of "clean on demand". Whether it is a workshop production line, an outdoor construction site, a narrow corner or a high-altitude operation area, it can be flexibly adapted to complete cleaning operations with 360° no dead ends, greatly reducing manual handling and operation costs.
Specific specifications are as follows:
| Model | QYCL-FP500 | QYCL-FP500A | ||
| Average laser power (w) | 500 | |||
| Single pulse energy (mJ) | 1.5 | 2 | 5 | 15 |
| Laser Brand | JPT | MAX/GZ | MAX/JPT/GZ | |
| Type of laser source | Pulse laser | |||
| Output fiber type | QBH | QCS/QBH | ||
| Central wavelength (nm) | 1060~1070 | |||
| Rated power (w) | 2.5 | |||
| Power adjustment range (%) | 10~100 | |||
| Focal distance (mm) | 100/160/254/330/420 | |||
| Cooling method | Air Cooling | |||
| Fiber length (m) | 5 | 5/10 | ||
| Weight of machine (kg) | 28/29±2 | |||
| Dimension of machine (mm) | 495*372*559 | 495*372*559 500*407*559 |
||
| Working temperature (℃) | 0~40 | |||
| Voltage (V) | 220 | |||
It is green and environmentally friendly with zero burden, no chemical reagents required, no waste water or dust emissions, and no consumable loss throughout the process. It is easy to operate, no professional technical training is needed, and it can be quickly put into use, balancing efficient cleaning and convenient operation. It is suitable for multiple industries such as hardware manufacturing, rail transit, ship maintenance and mold maintenance.
